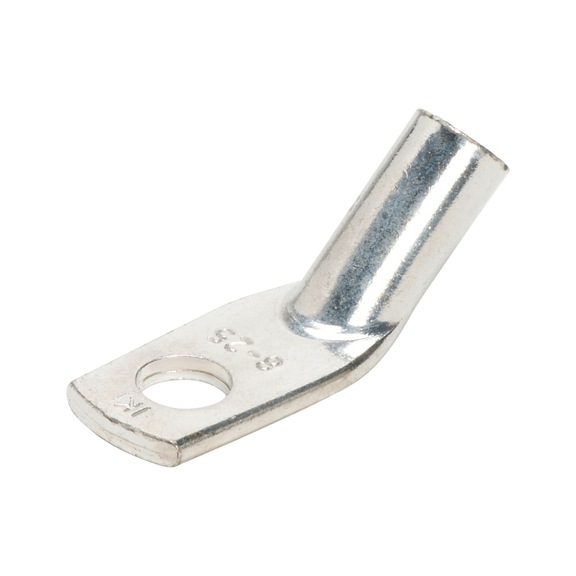

45° angled tube cable lug Standard (similar to DIN)

Name: 45° angled tube cable lug Standard (similar to DIN)
Brand: Würth
SKU: 56331108

Tubular angle cable lug 45 degree
TUBANGLCBLLUG-45DGR-(E-CU)-J2N-M8-10SMM

Art.-no. 56331108

EAN 4058794254778

All versions

Similar products

Prices for customers after login

45° angled tube cable lug Standard (similar to DIN)

Art.-no. 56331108

Prices for customers after login

Quantity

x 100 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For multi-strand round conductors e.g. in accordance with DIN EN 60228 Class 2 and 5

For round-pressed sector-shaped cables

Notice

The fitter must check the inserted cable (by trying to pull it out if necessary).

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Wire cross section	10 mm²
Flange hole	M8
Wire diameter (d1)	4.5 mm
Diameter of hole (d2)	8.4 mm
Sleeve length (a)	10 mm
Width (b)	15.0 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin plated

Additional accessory:

Product

Description

Quantity

Price
/PU

Mechanical manual crimping pliers

CRMPPLRS-(HEX-CRMP)-WK05-(6-50SMM)

Art.-no. 096705

Hexagon crimping

x 1 pcs

Mechanical manual crimping pliers

CRMPPLRS-(HEX-CRMP)-WK06-(10-120SMM)

Art.-no. 096706

Hexagon crimping

x 1 pcs

Mechanical manual crimping pliers WK 22 For replaceable half-shell crimping inserts, width 22 mm

HNDCRMPTL-MECH-(6-300SMM)

Art.-no. 0967080100

x 1 pcs

Hydraulic crimping tool, WHK 60/22 For half-shell crimping inserts, width 22 mm

CRMPTL-HYDR-WHK60/22-(6-300SMM)

Art.-no. 0967080120

x 1 pcs

Half-shell hexagon crimping insert

CRMPINRT-F.HEX-10SMM

Art.-no. 0967082010

22 mm wide

x 1 pcs
