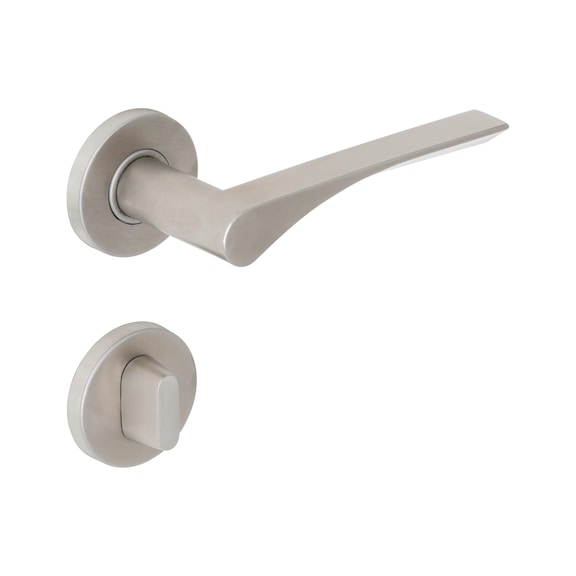

A 10 door handle

Rosette fitting A 10
DH-A2-A10-ROS-WC-MATT

Art.-no. 0688150301
EAN 4058794185188

Prices for customers after login
A 10 door handle

Art.-no. 0688150301

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Premium stainless steel fitting for private use, easy to install

Very simple assembly and best-possible hold


The handle and the base rosette are securely attached using metric screws end-to-end for the best possible hold.

Notice

Door handle fittings include an unmounted square spindle with front drill hole ■ 8 mm


Winding a soft adhesive tape around the screwdriver prevents damage to the handle surface during assembly.

Specified dimensions not binding. Subject to technical changes!

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.

Gloss level

Matt

Punched-hole

WC/bathroom with red/white display

Suitable for

Toilet and bathroom doors

Fitting version

Handle/handle

Distance (from handle to lock)

78 mm

Fire protection certified

No

Bearing Technology

Spring-mounted
Door handle, fixed

Material

Stainless steel A2, 1.4301

Suitable for min./max. door thickness (TS)

38-43 mm

DIN direction

DIN R/L

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Insertion depth

48 mm

Handle length

130 mm

Door handle mount diameter

15.8 mm

Handle height inc. rosette/ label

67 mm

Rosette diameter

52 mm

Rosette thickness

7.6 mm

Cam diameter

6.5 mm

Hole distance

38 mm

Included in delivery

2 x door handles, 1 x handle pin 8 x 110 mm, 1 x pair of WC rosettes, 1 x emergency release/latch release/pin 8 x 55 mm, 4 x metric screws M4 x 50 mm, 1 x installation instructions/drilling template

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Drilling jig For nylon door handle

AY-DRILLGAUGE -DRFRN-PLA-CENTERARBOR

x 1 pcs
Drilling jig base element For door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

x 1 pcs
Drilling jig For door handles and security door fittings with deadlock/CK punch

AY-DRILLINGJIG-DRFRN-INSERT-72/38-D6,5MM

x 1 pcs
Drilling jig For escutcheon fittings with WC thumbturn

AY-DRILLINGJIG-DRFRN-INSERT-78/38-D6,5MM

x 1 pcs
