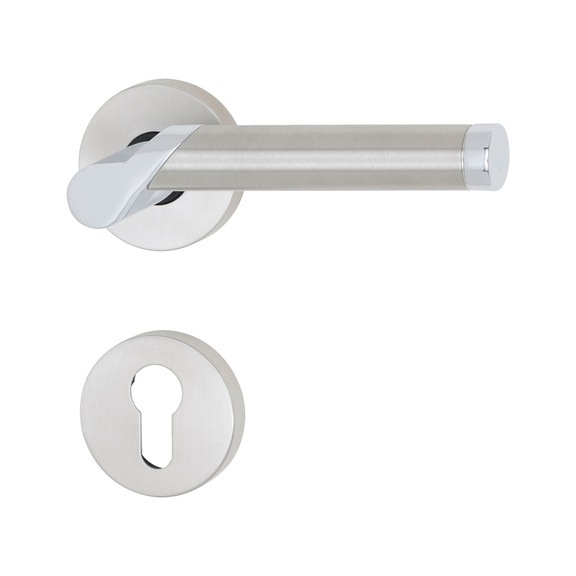

A 117 door handle

Rosette fitting A 117
DH-A2-A117-ROS-CK-(CR)-MATT

Art.-no. 0687151182
EAN 4058794210019
All versions

Prices for customers after login
A 117 door handle

Art.-no. 0687151182

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Premium stainless steel fitting for private use and which is easy to install.
  • Simple assembly and best possible hold as handles and base rosette are mounted separately for easier access and are attached end-to-end using tapping screws

  • High-quality handle bearing

  • Clearance-free connection with angular movement ≤ 1 mm between the handle and motion element in the rosette ensures stability during use.
Notice

Door handle fittings include an unmounted square or steel door spindle with front drill hole ■ 8 mm.


Delivery time: approx. 10 working days for lever/handle sets.

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Usable in private living areas, e.g. bedroom, WC/bathroom doors and apartment front doors.

Fitting version

Handle/handle

Distance (from handle to lock)

72 mm

Punched-hole

PC

Suitable for

Corridor and apartment entrance doors

Fire protection certified

No

Bearing Technology

Door handle, loose
Spring-mounted

Material

Stainless steel A2, 1.4301

Material of basic rosette

Glass fiber reinforced plastic plastic

Surface

Chrome plated

Suitable for min./max. door thickness (TS)

38-42 mm

DIN direction

DIN R/L

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Insertion depth

35 mm

Handle length

135 mm

Door handle mount diameter

15.9 mm

Handle height inc. rosette/ label

58.5 mm

Rosette diameter

54 mm

Rosette thickness

9.5 mm

Cam diameter

7.5 mm

Hole distance

38 mm

Included in delivery

2 x door handle hole plates, 1 x handle pin 8 x 110 mm, 1 x pair of handle rosettes, 1 x pair of PZ rosettes, 4 x tapping screws 3.9 x 50 mm, 1 x installation instructions/drilling template
