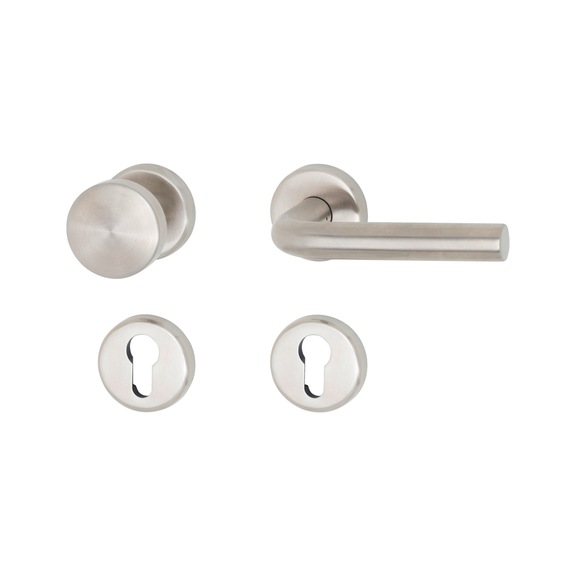

A 203 door handle

Name: A 203 door handle
Brand: Würth
SKU: 0688152043

Rosette fitting A 203 ClickFix
DH-A2-A203-CLICKFIX-CH-ROS-CK-R/L-MATT

Art.-no. 0688152043

EAN 4053479228440

All versions

Specification

ClickFix - tool-free mounting of door handle

Simple assembly and best possible hold

Handles and base rosette are mounted separately for easier access and are attached end-to-end using special chipboard screws.

Rapid, tool-free mounting of door handle

The door handle is mounted quickly and efficiently without the use of tools and grub screws, and boasts a self-locking attachment mechanism that facilitates automatic alignment when the handle pin is inserted.

Tested long-term functionality

Maximum requirement according to EN 1906 is 200,000 cycles, whereas this door handle has been tested to 1,000,000 cycles.

Consistent design

Matching window handles available

Notice

Door handle fittings include an unmounted square full pin or spindle ■ 7/8 mm

Dimensions subject to change. Subject to technical changes!

Application

Application area

For private living areas, e.g. interior, WC/bathroom and apartment entrance doors.

Technical information


Gloss level	Matt
Punched-hole	PC
Suitable for	Apartment entrance doors
Fitting version	Handle/knob
Distance (from handle to lock)	72 mm
Fire protection certified	No
Shape of door handle	L
Bearing Technology	Door handle, loose, Spring-mounted, ClickFix rapid assembly
Material	Stainless steel A2, 1.4301
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R/L
Standards	EN 1906
Utilisation category	Class 3
Environmental Product Declaration	No
Type of assembly	Quick installation, ClickFix
Square size	7 mm/8 mm
Spindle	With M10 thread roll
Handle length	127 mm
Handle diameter	19 mm
Door handle mount diameter	15.9 mm
Handle height inc. rosette/ label	79 mm
Knob/handle plate/loop handle	Solid
Knob diameter	50 mm
Grip height inc. rosette/label	60 mm
Rosette diameter	50 mm
Rosette thickness	10 mm
Cam diameter	7 mm
Hole distance	38 mm

Documents

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Accessory

Additive article:

Product

Description

Quantity

Price
/PU

Drilling jig base element For door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

Art.-no. 0688191300

x 1 pcs

Drilling jig For door handles and security door fittings with deadlock/CK punch

AY-DRILLINGJIG-DRFRN-INSERT-72/38-D7MM

Art.-no. 0688191311

x 1 pcs
