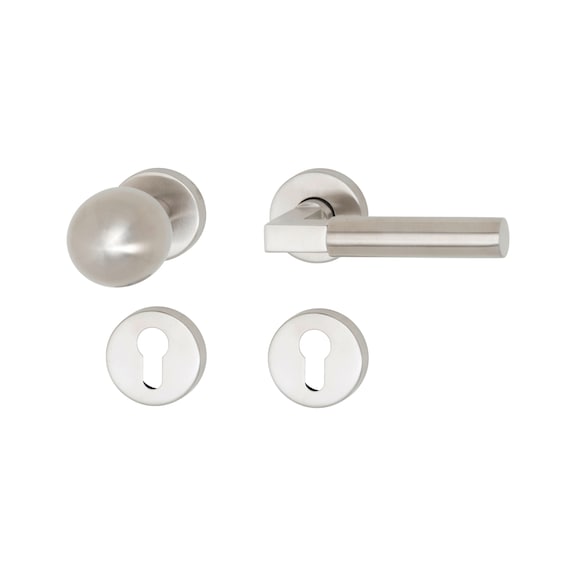

A 409 door handle - DH-A2-A409-CH-ROS-CK-R-MATT

A 409 door handle - DH-A2-A409-CH-ROS-CK-R-MATT - 1

A 409 door handle - DH-A2-A409-CH-ROS-CK-R-MATT - 2

A 409 door handle - DH-A2-A409-CH-ROS-CK-R-MATT - 3

A 409 door handle - DH-A2-A409-CH-ROS-CK-R-MATT - 4

A 409 door handle

Name: A 409 door handle
Brand: Würth
SKU: 0687153093

Stainless steel rosette fitting A 409
DH-A2-A409-CH-ROS-CK-R-MATT

Art.-no. 0687153093

EAN 4053479228556

All versions

Similar products

Prices for customers after login

A 409 door handle

Art.-no. 0687153093

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Absolute premium property fitting for private dwelling and building construction that is easy to install and fulfils higher requirements than EN 1906 class 3 demands

Simple assembly and best-possible hold

Handles and base rosette are mounted separately for greater ease of access and are attached using metric screws end-to-end.

High-quality handle mount

Clearance-free connection with angular movement ≤ 1 mm between the handle and motion element in the rosette ensures stability when used. The door handle is also ball-bearing mounted at each side with retaining spring.

Tested long-term functionality

Maximum demand is 200,000 cycles according to EN 1906, this door handle has been tested to 1,000,000 cycles.

Notice

Door handle fittings include an unmounted square spindle or steel door spindle with front drill hole ■ 8 mm

Delivery time: approx. 10 working days for profile cylinder and replacement fittings.

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For private living areas, buildings, e.g. interior, office, WC/bathroom and apartment entrance doors.


Punched-hole	PC
Fitting version	Handle/knob
Suitable for	Office doors, Surgery doors, Apartment entrance doors
Distance (from handle to lock)	72 mm
Fire protection certified	No
Bearing Technology	Door handle, loose, Spring-mounted, Ball-bearing
Material	Stainless steel A2, 1.4301
Material of basic rosette	Glass fiber reinforced plastic plastic
Gloss level	Matt
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R
Standards	EN 1906
Utilisation category	Class 3
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Spindle	With M10 thread roll
Insertion depth	56 mm
Handle length	127 mm
Door handle mount diameter	15.9 mm
Handle height inc. rosette/ label	73 mm
Knob/handle plate/loop handle	Solid
Knob diameter	55 mm
Grip height inc. rosette/label	89 mm
Rosette/ shield shape	Rosette round
Rosette diameter	54 mm
Rosette thickness	9.5 mm
Cam diameter	7.5 mm
Hole distance	38 mm

Additional accessory:

Product

Description

Quantity

Price
/PU

Drilling jig base element For door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

Art.-no. 0688191300

x 1 pcs

Drilling jig For door handles and security door fittings with deadlock/CK punch

AY-DRILLINGJIG-DRFRN-INSERT-72/38-D7,5MM

Art.-no. 0688191312

x 1 pcs
