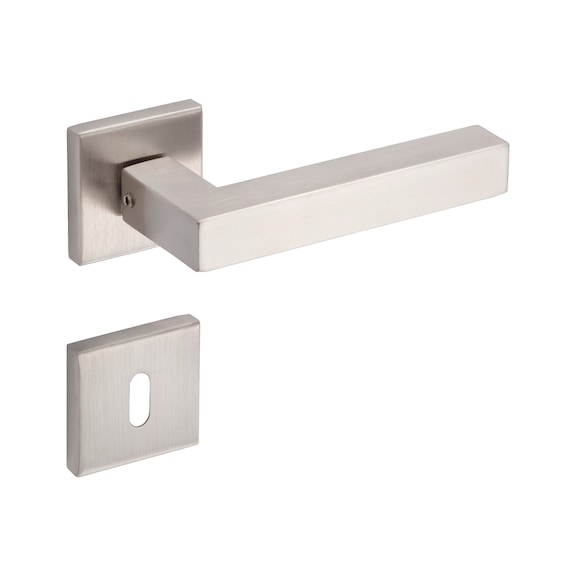

A 413 door handle

Rosette fitting A 413
DH-A2-A413-ROS-KH-MATT

Art.-no. 0687153140
EAN 4053479236476

Prices for customers after login
A 413 door handle

Art.-no. 0687153140

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Absolute premium property fitting for private dwelling and building construction that is easy to install and fulfils higher requirements than EN 1906 class 3 demands

Simple assembly and best-possible hold


Handles and base rosette are mounted separately for greater ease of access and are attached using metric screws end-to-end.



High-quality handle mount


Clearance-free connection with angular movement ≤ 1 mm between the handle and motion element in the rosette ensures stability when used. The door handle is also ball bearing-mounted on each side with a retaining spring.



Tested long-term functionality


Maximum demand is 200,000 cycles according to EN 1906, this door handle has been tested to 1,000,000 cycles.

Notice

Door handle fittings include an unmounted square spindle or steel door spindle with front drill hole ■ 8 mm.

Specified dimensions not binding. Subject to technical changes.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For private living areas, buildings, e.g. interior, office, WC/bathroom and apartment entrance doors.

Punched-hole

KI

Fitting version

Handle/handle

Suitable for

Office doors, Surgery doors, Interior doors

Distance (from handle to lock)

72 mm

Fire protection certified

No

Bearing Technology

Door handle, loose, Spring-mounted, Ball-bearing

Material

Stainless steel A2, 1.4301

Material of basic rosette

Glass fiber reinforced plastic plastic

Gloss level

Matt

Suitable for min./max. door thickness (TS)

36-45 mm

DIN direction

DIN R/L

Standards

EN 1906

Utilisation category

Class 3

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Insertion depth

64 mm

Handle length

140 mm

Handle diameter

22 mm

Door handle mount diameter

15.9 mm

Handle height inc. rosette/ label

66.5 mm

Rosette/ shield shape

Rosette square

Rosette thickness

9.5 mm

Cam diameter

7.5 mm

Hole distance

38 mm
