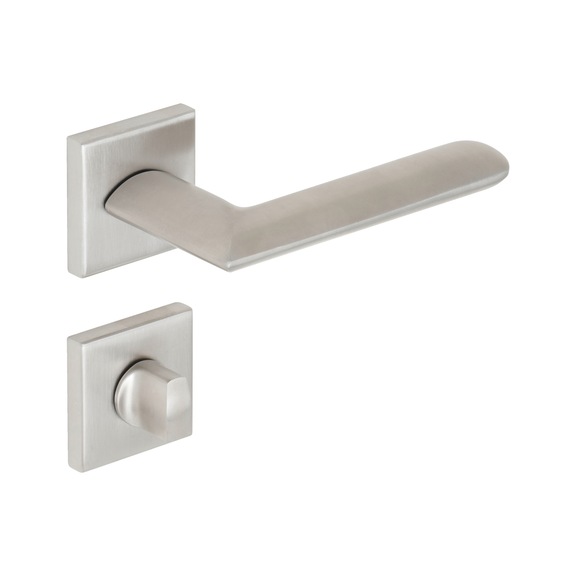

A 432 door handle

Name: A 432 door handle
Brand: Würth
SKU: 0687153331

Rosette fitting A 432
DH-A2-A432-ROS-WC-MATT

Art.-no. 0687153331

EAN 4058794210453

All versions

Specification

Absolute premium property fitting for private dwelling and building construction that is easy to install and fulfils higher requirements than EN 1906 class 3 demands

Simple assembly and best-possible hold

Handles and base rosette are mounted separately for greater ease of access and are attached using metric screws end-to-end.

High-quality handle mount

Clearance-free connection with angular movement ≤ 1 mm between the handle and motion element in the rosette ensures stability when used. The door handle is also ball bearing-mounted on each side with a retaining spring.

Tested long-term functionality

Maximum demand is 200,000 cycles according to EN 1906, this door handle has been tested to 1,000,000 cycles.

Notice

Door handle fittings include an unmounted square or steel door spindle with front drill hole ■ 8 mm.

Delivery time: approx. 10 working days for profile cylinder and lever/handle sets.

Specified dimensions not binding. Subject to technical changes.

Application

Application area

For private living areas, buildings, e.g. interior, office, WC/bathroom and apartment entrance doors.

Technical information


Punched-hole	WC/bathroom
Fitting version	Handle/handle
Suitable for	Toilet and bathroom doors
Distance (from handle to lock)	78 mm
Fire protection certified	No
Bearing Technology	Door handle, loose, Spring-mounted, Ball-bearing
Material	Stainless steel A2, 1.4301
Material of basic rosette	Glass fiber reinforced plastic plastic
Gloss level	Matt
Suitable for min./max. door thickness (TS)	36-45 mm
DIN direction	DIN R/L
Standards	EN 1906
Utilisation category	Class 3
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Insertion depth	70 mm
Handle length	150 mm
Door handle mount diameter	15.9 mm
Handle height inc. rosette/ label	78.5 mm
Rosette/ shield shape	Rosette square
Width of rosette	55 mm
Rosette thickness	9.5 mm
Cam diameter	7.5 mm
Hole distance	38 mm
Included in delivery	2 x door handle hole plates, 1 x handle pin 8 x 110 mm, 1 x pair of handle rosettes, 1 x pair of WC rosettes, 1 x emergency release/latch release/pin 7/8 x 70 mm, 4 x metric screws 4 x 45 mm, 1 x installation instructions/drilling template

Classification key in line with DIN EN 1906: 2012-12
3	7*	–	0	0	4	0	B
*Additional tests have shown a continuous working capability of 1,000,000 test cycles
