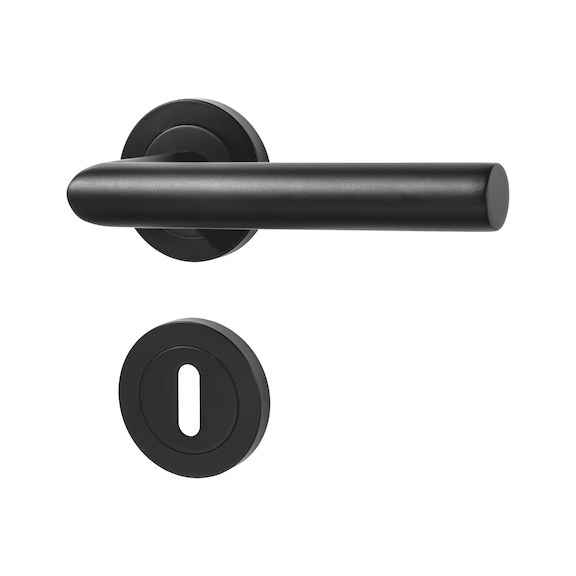

A 55 door handle

Rosette fitting A 55
DH-A2-A55-ROS-KH-BLACK-MATT

Art.-no. 0687150300
EAN 4062856102259
All versions

Prices for customers after login
A 55 door handle

Art.-no. 0687150300

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

High-quality stainless steel fitting with square screw-on rosette
  • Easy mounting: Handles and base rosette are mounted separately for easier access and are attached using exclusively metric screws

  • High-quality handle bearing

  • Fitted with return springs on both sides
Notice

Door handle fittings include an unmounted square or steel door spindle with front drill hole ■ 8 mm.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Can be used in private living areas and public areas.

Colour

Black

Gloss level

Matt

Punched-hole

KI oval

Suitable for

Interior doors

Fitting version

Handle/handle

Distance (from handle to lock)

72 mm

Fire protection certified

No

Shape of door handle

GE (Frankfurt type)

Bearing Technology

Door handle, fixed, Spring-mounted

Material

Stainless steel A2

Suitable for min./max. door thickness (TS)

38-47 mm

DIN direction

DIN R/L

Standards

EN 1906

Utilisation category

Class 3

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Spindle

0 - not applicable

Insertion depth

65 mm

Handle length

130 mm

Handle diameter

19

Door handle mount diameter

15.8 mm

Handle height inc. rosette/ label

68 mm

Knob/handle plate/loop handle

0 - not applicable

Rosette diameter

51 mm

Rosette thickness

7 mm

Cam diameter

7 mm

Hole distance

38 mm

Included in delivery

2 x handle rosettes, 2 x hole plates, 2 x BB rosettes, 1 x set of screws, 1 x square spindle 8 mm

Classification key in line with DIN EN 1906: 2012-12
3 7 0 0 1 3 0 A
