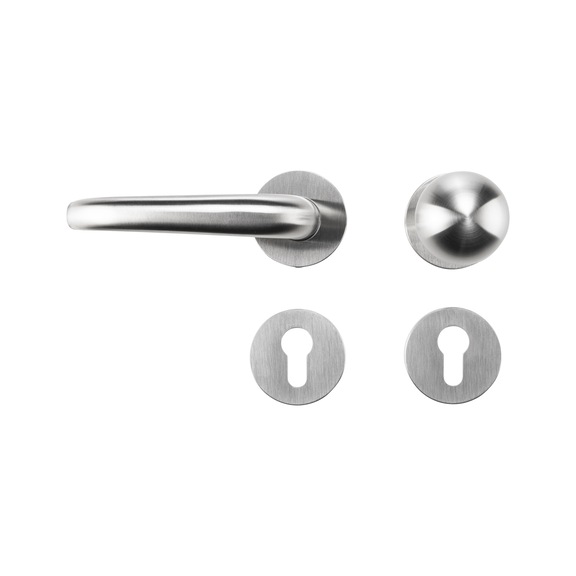

A 610 FS door handle - DH-A2-A610/FS-CH-ROS-CK-L-MATT

A 610 FS door handle - DH-A2-A610/FS-CH-ROS-CK-L-MATT - 1

A 610 FS door handle - DH-A2-A610/FS-CH-ROS-CK-L-MATT - 2

A 610 FS door handle - DH-A2-A610/FS-CH-ROS-CK-L-MATT - 3

A 610 FS door handle

Name: A 610 FS door handle
Brand: Würth
SKU: 0687157104

Rosette fitting A 610 FS
DH-A2-A610/FS-CH-ROS-CK-L-MATT

Art.-no. 0687157104

EAN 4053479363196

All versions

Similar products

Prices for customers after login

A 610 FS door handle

Art.-no. 0687157104

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Fire protection tested, meets the valid requirements for fire protection and escape doors

The door handles can be screwed onto the base rosette, spring-loaded with a 90° stop including maintenance-free, closed ball bearings with integrated flexible bearings for the door handle guide

The continuous screw connection with metric screws and support cam provide optimal support for the rosette

Maximum requirement according to EN 1906 is 200,000 cycles. This door handle has been tested to 1,000,000 cycles

Notice

Door handle fittings include an unattached square solid spindle, handle/knob spindle or split panic spindle ■ 9 mm.

The delivery time is approx. 10 working days.

Door handles can also be supplied with an antibacterial surface by special order.

The fire protection approval only applies to complete Würth fire protection fittings or combinations of Würth fire protection individual parts that form an approved assembly in accordance with DIN 18273. Only Würth original parts may be used for installation. The assembly work, including all components (screws and spindles), must be performed according to the instructions by a qualified professional. Failure to do so will void any warranty claim.

Specified dimensions not binding. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For public areas, e.g. fire doors, panic doors and smoke protection doors.


Fire protection certified	Yes
Fitting version	Handle/knob
Suitable for	Fire protection doors, Smoke protection doors
Punched-hole	PC
Distance (from handle to lock)	72 mm
Shape of door handle	Ulm handle
Bearing Technology	Door handle, fixed, Spring-mounted, Ball-bearing
Material	Stainless steel A2, 1.4301
Gloss level	Matt
Suitable for min./max. door thickness	40-65 mm
DIN direction	DIN L
Standards	EN 1906, EN 179, DIN 18273
Utilisation category	Class 4
Environmental Product Declaration	Yes
Type of assembly	Continuous fastening
Square size	9 mm
Spindle	With M12 thread roll
Insertion depth	45 mm
Handle length	138 mm
Door handle mount diameter	17.8 mm
Knob/handle plate/loop handle	Solid
Knob diameter	50 mm
Handle height inc. rosette/ label	68 mm
Rosette diameter	55 mm
Rosette thickness	9 mm
Cam diameter	8 mm
Hole distance	38 mm

Classification key according to DIN EN 1906: 2012-12
4	D9*	-	B1	1	5	0	B
* 1 million test cycles, tested according to MPAZert
