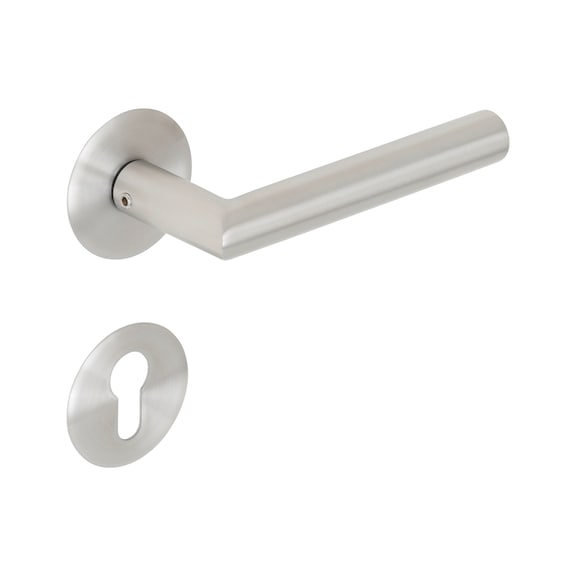

A 705 door handle

Name: A 705 door handle
Brand: Würth
SKU: 0688153052

Rosette fitting A 705
DH-A2-A705-ROS-CK-MATT

Art.-no. 0688153052

EAN 4058794210514

All versions

Specification

The handle fitting gives the interior door a personal touch, the rosettes are very flat and are fixed invisibly.

Very simple assembly and best-possible hold

Handles and base rosette are mounted separately for easier access, rosettes are attached simply through special support cams that are pressed together in an infinitely variable arrangement

Flush look

Without the rosettes being milled into the door leaf

Notice

Door handle fittings include a split square ■ 8 mm.

Specified dimensions not binding. Subject to technical changes!

Application

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.

Technical information


Gloss level	Matt
Punched-hole	PC
Suitable for	Corridor and apartment entrance doors
Fitting version	Handle/handle
Distance (from handle to lock)	72 mm
Fire protection certified	No
Shape of door handle	GE (Frankfurt type)
Bearing Technology	Door handle, loose, With plastic bearing
Materiaal	Stainless steel A2, 1.4301
Suitable for min./max. door thickness (TS)	38-50 mm
DIN direction	DIN R/L
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Insertion depth	60 mm
Handle length	135 mm
Handle diameter	20 mm
Door handle mount diameter	15.9 mm
Handle height inc. rosette/ label	61 mm
Width of rosette	55 mm
Rosette thickness	1.5 mm
Cam diameter	7.5 mm
Hole distance	38 mm
Included in delivery	2 x door handle hole plates, 1 x handle pin 8 x 110 mm, 1 x pair of handle rosettes, 1 x pair of PZ rosettes, 1 x installation instructions/drilling template

Documents

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Accessory

Additional accessory:

Product

Description

Quantity

Price
/PU

Drilling jig for escutcheon fittings

DRLJIG-DH-SET-F-HANDLE-CAMS-D7,5

Art.-no. 068819140

Quick, easy and safe pre-drilling of escutcheon fittings with dia. 7.5 mm cams

x 1 pcs
