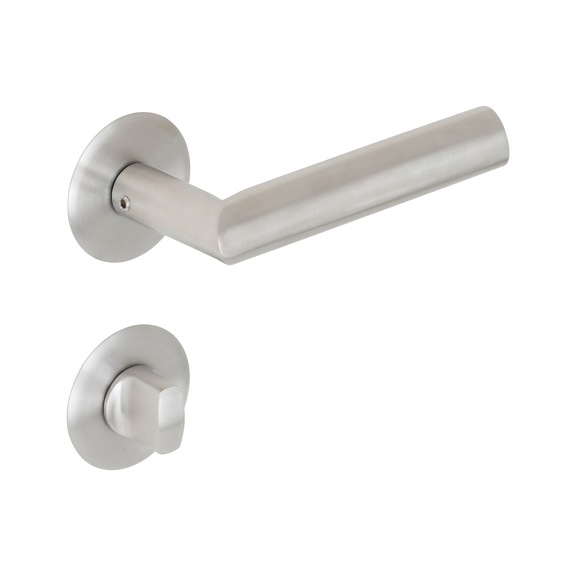

A 708 door handle

Rosette fitting A 708
DH-A2-A708-ROS-WC-MATT

Art.-no. 0688153081
EAN 4058794210538

Prices for customers after login
A 708 door handle

Art.-no. 0688153081

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

The handle fitting made from stainless steel gives the interior door a personal touch, the rosettes are very flat and are fixed invisibly.

Simple assembly and best-possible hold


Handles and base rosette are mounted separately for greater ease of access, rosettes are attached simply through special support cams that are pressed together in an infinitely variable arrangement.



Flush look


without the rosettes being milled into the door leaf.

Notice

Door handle fittings include a split square ■ 8 mm.

Specified dimensions not binding. Subject to technical changes!

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.

Colour

0 - not applicable

Gloss level

Matt

Punched-hole

WC/bathroom

Suitable for

Toilet and bathroom doors

Fitting version

Handle/handle

Distance (from handle to lock)

78 mm

Fire protection certified

No

Shape of door handle

GE, cranked

Bearing Technology

Door handle, loose, With plastic bearing

Material

Stainless steel A2, 1.4301

Suitable for min./max. door thickness (TS)

38-50 mm

DIN direction

DIN R/L

Utilisation category

0 - not applicable

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Spindle

0 - not applicable

Insertion depth

60 mm

Handle length

135 mm

Handle diameter

20 mm

Door handle mount diameter

15.9 mm

Handle height inc. rosette/ label

60 mm

Knob/handle plate/loop handle

0 - not applicable

Rosette diameter

55 mm

Rosette thickness

1.5 mm

Cam diameter

7.5 mm

Hole distance

38 mm

Included in delivery

2 x door handle hole plates, 1 x handle pin 8 x 110 mm, 1 x pair of handle rosettes, 1 x pair of WC rosettes, 1 x emergency release/latch release/pin 7/8 x 55 mm, 1 x installation instructions/drilling template

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Drilling jig base element For door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

x 1 pcs
Drilling jig For door handles and security door fittings with deadlock/CK punch

AY-DRILLINGJIG-DRFRN-INSERT-72/38-D7,5MM

x 1 pcs
Drilling jig For escutcheon fittings with WC thumbturn

AY-DRILLINGJIG-DRFRN-INSERT-78/38-D7,5MM

x 1 pcs
