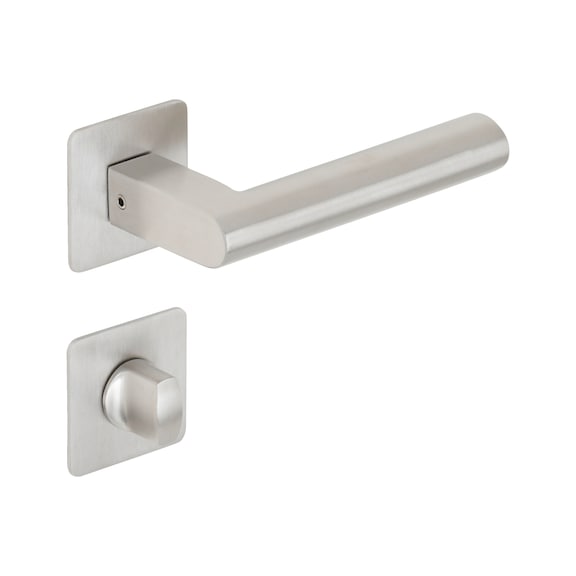

A 730 door handle - DH-A2-A730-ROS-WC-MATT

A 730 door handle - DH-A2-A730-ROS-WC-MATT - 1

A 730 door handle - DH-A2-A730-ROS-WC-MATT - 2

A 730 door handle - DH-A2-A730-ROS-WC-MATT - 3

A 730 door handle

Name: A 730 door handle
Brand: Würth
SKU: 0688153311

Rosette fitting A 730
DH-A2-A730-ROS-WC-MATT

Art.-no. 0688153311

EAN 4058794210620

All versions

Similar products

Prices for customers after login

A 730 door handle

Art.-no. 0688153311

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

The handle fitting made from stainless steel gives the interior door a personal touch, the rosettes are very flat and are fixed invisibly.

Simple assembly and best-possible hold

Handles and base rosette are mounted separately for greater ease of access and are attached simply through special support cams that are pressed together in an infinitely variable arrangement.

Flush look

without the rosettes being milled into the door leaf.

Notice

Door handle fittings include a split square ■ 8 mm.

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Can be used for private living areas, e.g. interior, WC/bathroom and apartment entrance doors.


Gloss level	Matt
Punched-hole	WC/bathroom
Suitable for	Toilet and bathroom doors
Fitting version	Handle/handle
Distance (from handle to lock)	78 mm
Fire protection certified	No
Bearing Technology	Door handle, loose, With plastic bearing
Material	Stainless steel A2, 1.4301
Suitable for min./max. door thickness (TS)	38-50 mm
DIN direction	DIN R/L
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Insertion depth	40 mm
Handle length	135 mm
Door handle mount diameter	15.9 mm
Handle height inc. rosette/ label	66.5 mm
Width of rosette	55 mm
Rosette thickness	1.5 mm
Cam diameter	7.5 mm
Hole distance	38 mm
Included in delivery	2 x door handle hole plates, 1 x handle pin 8 x 110 mm, 1 x pair of handle rosettes, 1 x pair of WC rosettes, 1 x emergency release/latch release/pin 7/8 x 55 mm, 1 x installation instructions/drilling template

Additional accessory:

Product

Description

Quantity

Price
/PU

Drilling jig base element For door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

Art.-no. 0688191300

x 1 pcs

Drilling jig For door handles and security door fittings with deadlock/CK punch

AY-DRILLINGJIG-DRFRN-INSERT-72/38-D7,5MM

Art.-no. 0688191312

x 1 pcs

Drilling jig For escutcheon fittings with WC thumbturn

AY-DRILLINGJIG-DRFRN-INSERT-78/38-D7,5MM

Art.-no. 0688191317

x 1 pcs
