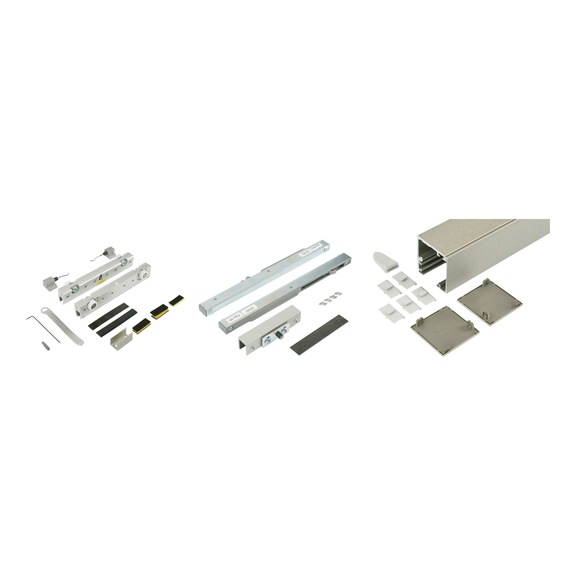

ABILIT 120-G interior sliding door fitting set for ceiling mounting for glass doors
Sliding door ftng set ABILIT 120-G ceiling mount.
SLIDDRFITT-ABILIT120GD-WD-80-A2-2000
Art.-no. 0687918086
EAN 4065746664608
Register now and access more than 125,000 products
- Glass type: suitable for tempered safety glass and laminated glass (with adhesive set included in the scope of delivery)
- Optionally with damping on both sides
Datasheets(X)
 | |
Suitable for | Glass doors |
Mounting option | Ceiling installation |
Load capacity | 80 kg |
Suitable for glass-door thickness | 8/10 mm |
Suitable for min. door width | 630 mm |
Height adjustment | + 4 mm /- 3 mm |
Damper | Both sides |
Material | Aluminium |
Surface | Anodised |
Colour | Stainless steel coloured |
Rail length | 2000 mm |
Bearing Technology | Ball-bearing |
