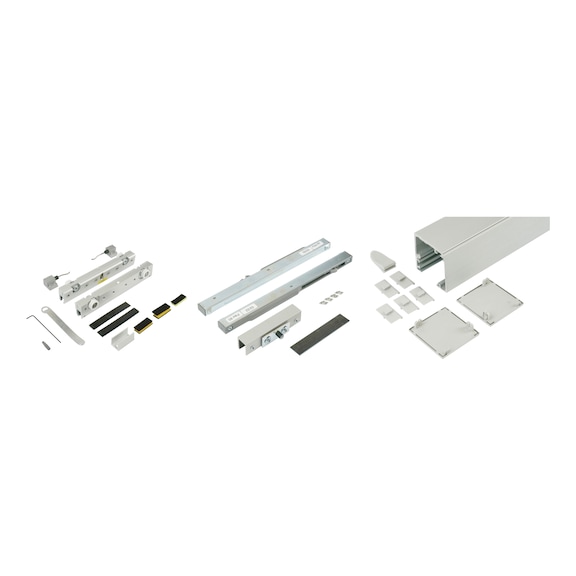

ABILIT 120-G interior sliding door fitting set for wall mounting for glass doors
Sliding door ftng set ABILIT 120-G wall mount.
SLIDDRFITT-ABILIT120GW-WD-80-SI-3000
Art.-no. 0687918111
EAN 4065746665032
Register now and access more than 125,000 products
- Load capacity: 120 kg
- Door thickness: 8-10.76 mm
- Glass type: Suitable for tempered safety glass and laminated glass (with adhesive set included in the scope of delivery)
- Door width: min. 630 mm
- Door height: max. 3,000 mm
- Height adjustment: +4/-3 mm on the carriage
- Optionally with damping on both sides
Datasheets(X)
 | |
Suitable for | Glass doors |
Mounting option | Wall installation |
Load capacity | 80 kg |
Suitable for glass-door thickness | 8/10 mm |
Suitable for min. door width | 630 mm |
Height adjustment | + 4 mm /- 3 mm |
Damper | Both sides |
Material | Aluminium |
Surface | Anodised |
Colour | Silver coloured |
Rail length | 3000 mm |
Bearing Technology | Ball-bearing |
