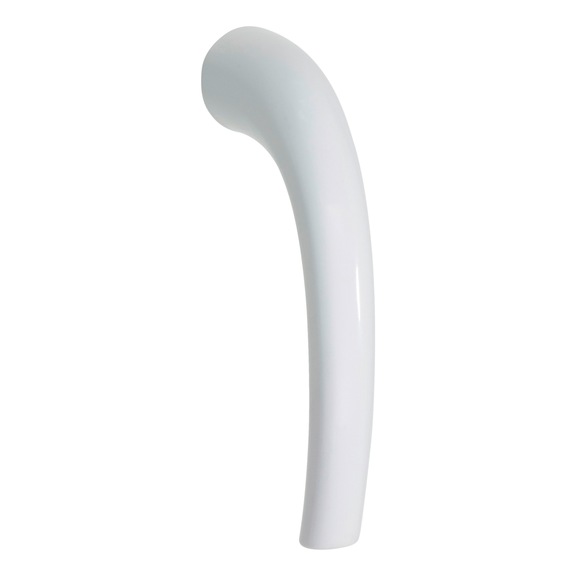

AL 440 drive handle

Name: AL 440 drive handle
Brand: Würth
SKU: 0687763850

Drive handle AL 440
WH-HANDLE-AL40-WITH-SPINDEL-RAL9016-38

Art.-no. 0687763850

EAN 4053479733876

All versions

Specification

The handle is used to occasionally operate the window mechanism in conjunction with a cover rosette.

Notice

Delivery time approx. 15-20 working days.

Specified dimensions not binding. Subject to technical changes.

Application

Application area

For private living areas, e.g. fixed wing on parallel sliding doors.

Technical information


Material	Aluminium
Material of pin	Steel
Surface	Powder-coated
Colour	Traffic white RAL 9016
Length of pin (A)	38 mm
Square size	7 mm
DIN direction	DIN R/L
Handle length	122 mm

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)

Accessory

Required accessory:

Product

Description

Quantity

Price
/PU

Covering rosette For use on windows without window handles

COVROS-F.WH-OV-RAL9016-WHTE

Art.-no. 0687762800
