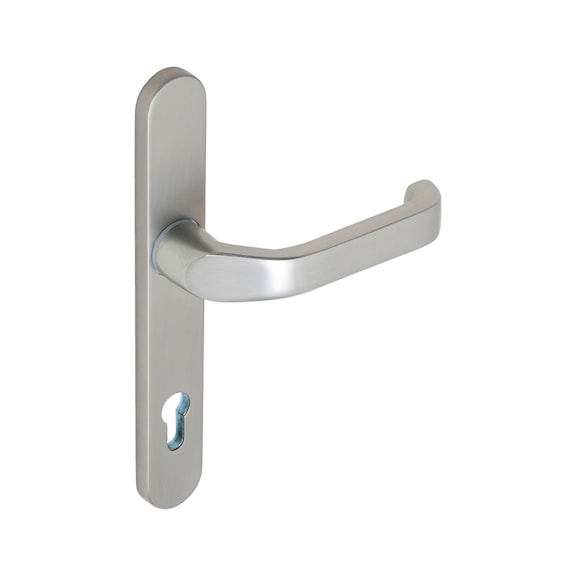

AL 920 door handle on outer plate With CK punch

Door handle AL 920 on outer plate with PC hole
DH-ALU-AL920-OUTS-H-CK-92-8-216-F9/(A2-O

Art.-no. 0687287510
EAN 4057708383351
All versions

Prices for customers after login
AL 920 door handle on outer plate With CK punch

Art.-no. 0687287510

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

  • Best possible hold, as the handle and the long plate are securely attached to ensure the best possible hold

  • Low storage costs

  • Versatile combination options and low storage costs, as all articles individually available

  • Drill guard is located on the rear of the fitting

  • The metal fittings can be used in DIN R and DIN L doors without alteration
Notice

Square pins and inside handles must be ordered separately.

Specified dimensions not binding. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For living areas and public areas (tubular frame doors, profile doors), plastic or metal house doors and side entrance doors.

Punched-hole

PC

Area of application

Object area, Private area

Suitable for

House doors, Profiled frame doors, Tubular door frames

Design

0 - not applicable

Distance (from handle to lock)

92 mm

Fire protection certified

No

Shape of door handle

0 - not applicable

Bearing Technology

Door handle, fixed, Return mechanism

Material

Aluminium

Hole distance

216 mm

Door-plate width

36 mm

Colour

Stainless steel F9

Surface

Anodised

DIN direction

DIN R/L

Standards

EN 1906

Utilisation category

Class 4

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Spindle

0 - not applicable

Insertion depth

40 mm

Handle length

145 mm

Cam diameter

10 mm

Suitable for min./max. profile-cylinder projection

9-13 mm

Door-plate length

245 mm

Label thickness

10 mm

Handle height inc. rosette/ label

66 mm

Knob/handle plate/loop handle

0 - not applicable

Classification key in line with DIN EN 1906: 2010-09
4 7 - 0 1 4 0 A
