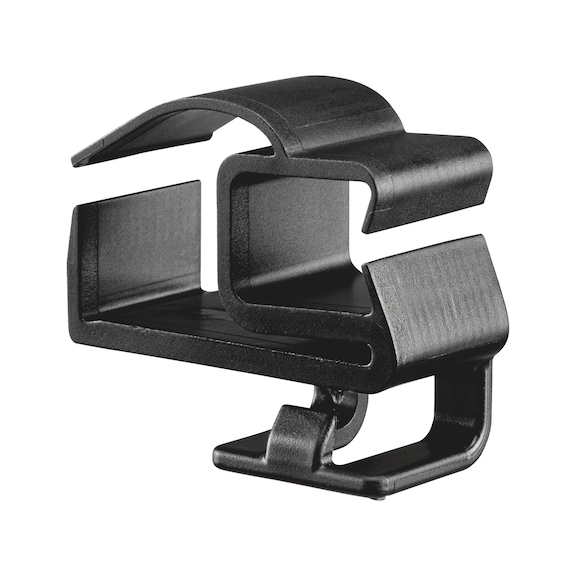

ALPHA PV clip for cable management on PV modules
CBLCLIP-FAST
Art.-no. 0865799970
EAN 4068362747656
Register now and access more than 125,000 products
Secure and orderly cable routing directly on the module frame
- Orderly, robust cable routing on photovoltaic modules.
- Suitable for all commercially available modules and therefore ideal for a wide range of system concepts.
Versatile
- Enables cable management along and perpendicular to the profile with a single component, thus replacing several conventional solutions.
- Reversible for use on both sides of the frame of photovoltaic modules - for maximum flexibility during installation.
- Significantly reduces material usage, installation effort and potential sources of error.
- Temperature-resistant across a wide range and UV-resistant due to suitable additive packages in the material.
- For universal use.
Quick to install
- Tool-free installation.
- Quick installation and easy handling result in significant time savings.
Patented product
- Developed and produced in Germany.
- The required number and the positioning of the ALPHA PV clips always depend on the respective installation type.
- For secure fastening, we recommend using at least 2 ALPHA PV clips on the short side of the frame and at least 3 ALPHA PV clips on the long side of the frame.
Datasheets(X)
Suitable for applications on façades, flat roofs, pitched roofs, balcony solar systems etc.
Longitudinal to the profile:
- Clip can bundle up to 4 cables with a diameter of 6 mm or 3 cables with a diameter of 7 mm.
Transverse to the profile:
- Clip can bundle up to 2 cables with a diameter of up to 7 mm.
Material | PA 6.6 - Polyamide |
Colour | Black |
Width | 20 mm |
Height | 37.3 mm |
Length | 40.5 mm |
Min./max. temperature resistance | -40 to 85 °C |
Min./max. processing temperature | -20 to 85 °C |
Ultraviolet resistance | Yes |
Silicone-free | Yes |
Halogen-free | Yes |
RoHS-compliant | Yes |
Compliant with REACH | Yes |
Flammability | Self-extinguishing as per UL94 HB |
