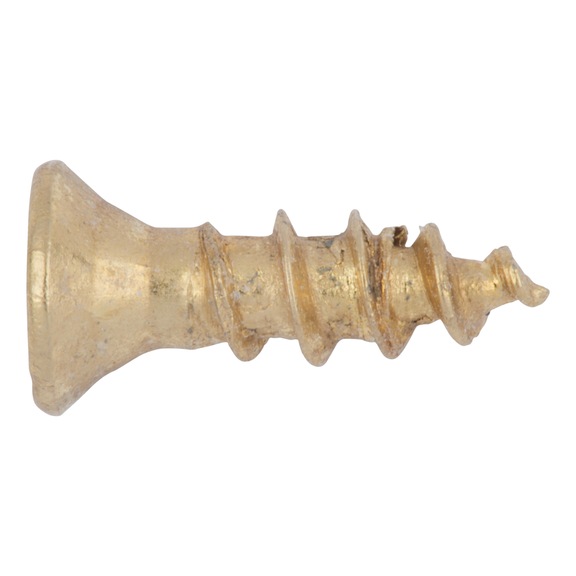

ASSY® 3.0 brass-plated Screw for slatted hinge
ASSY 3.0 piano hinge, st brass AW, full gw
SCR-CS-SMALHD-WO-AW10-(D1J)-3X20/17
Art.-no. 0168130020
EAN 4047376872691
Register now and access more than 125,000 products
Asymmetrical, single-use
Small countersunk head ∅ 5.0 mm
AW drive – more power
- Optimum force transmission
- Excellent fit
- Quick search
- Secure screw insertion
- Virtually without unscrewing the bit
- Very stable and steady
- No damage to the surface coating of the screw
ETA-11/0190
Datasheets(X)
CAD data (available after login)
 | |
Nominal diameter (d) | 3 mm |
Length (l) | 20 mm |
Head type | Small countersunk head |
Head diameter (dh) | 4.9 mm |
Head height (k) | 1.3 mm |
Internal drive | AW10 |
Thread type | Wood screw thread |
Thread design | Full thread |
Thread form | Single start thread |
Thread length (lg) | 17 mm |
Core diameter | 1.95 mm |
Shape of tip | Tip with ring thread |
Angle of the tip | 34 Degree |
Material | Hardened steel |
Surface | Brass plated |
Min./max. screw-in angle | 0-90 Degree |
Product weight (per item) | 0.626 g |
Suitable for use in the following materials | Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood |
Area of application | Furniture, Cabinet, Fitting, Piano hinge |
Approval | ETA-11/0190 |
Screw requiring approval | Yes |
RoHS-compliant | Yes |
