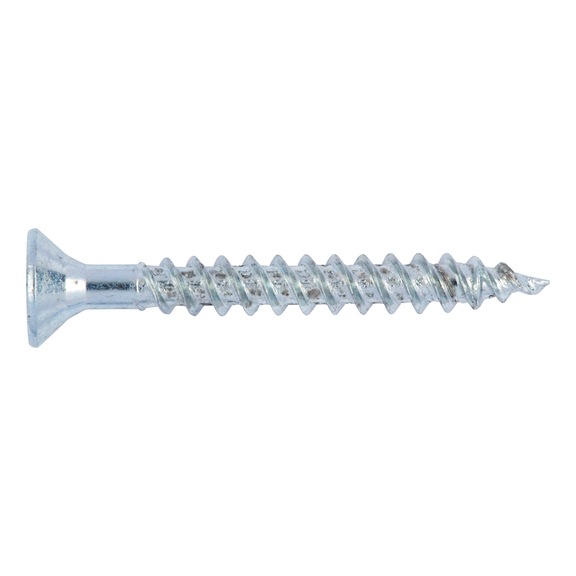

ASSY® 3.0 roller sorted Chipboard screw
ASSY 3.0, galvanised st., full thread, AW, sorted
SCR-CS-WO-AW10-(A2K)-ROLL-3,5X35/30
Art.-no. 0170435035
EAN 4047376865167
Register now and access more than 125,000 products
Specially tested screws for use in machines
AW drive — more power
- Optimum force transmission
- Excellent fit
- Quick search
- Secure screw insertion
- Virtually without unscrewing the bit
- Very stable and steady
- No damage to the surface coating of the screw
ASSY 3.0 screws have been optimally adapted for use in wood. A reduced load-bearing capacity of the connection must be considered when using these screws for plastic dowels. For this reason, we only recommend using screws without an optimised thread end (self-drilling blade, counter-thread, ring thread, serrated edge, discharge groove, etc.) for dowels, e.g. ASSY D hexagon wood screws according to DIN 571 or Wüpofast screws.
ETA-11/0190 approval must be observed when using these screws.
Working papers available:
Wood dimensioning software, load tables and detailed instructions can be found at www.wuerth.de/assy.
ETA-11/0190
Datasheets(X)
CAD data (available after login)
Standard mechanical screwing for wood-to-wood connections.
Screwing angle from 0° to 90°. In the case of softwood or softwood materials, installation can be carried out without pre-drilling. In order to reduce the distance between the edges, a hole must be drilled according to the diameter for the thread. When screwing into hardwood, drill in accordance with ETA-11/0190 approval.
 | |
Nominal diameter (d) | 3.5 mm |
Length (l) | 35 mm |
Head type | Countersunk head |
Head diameter (dh) | 6.8 mm |
Head height (k) | 2.1 mm |
Internal drive | AW10 |
Thread type | Wood screw thread |
Thread design | Full thread |
Thread form | Double start thread |
Thread length (lg) | 30 mm |
Core diameter | 2.1 mm |
Shape of tip | Tip with ring thread |
Angle of the tip | 20 Degree |
Material | Hardened steel |
Surface | Zinc plated |
Colour | Silver |
Min./max. screw-in angle | 0-90 Degree |
Product weight (per item) | 1.550 g |
Suitable for use in the following materials | Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood |
Area of application | Furniture, Cabinet, Fitting |
Approval | ETA-11/0190 |
Screw requiring approval | Yes |
RoHS-compliant | Yes |
