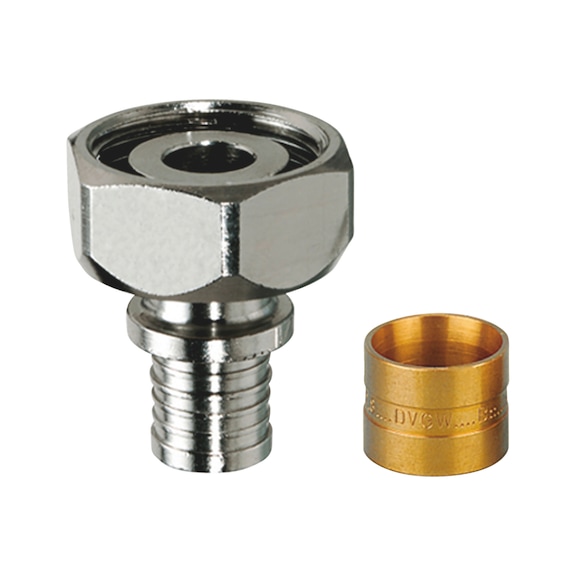

Adapter fitting with Eurocone fitting
PRINETO adapter fitting Eurocone with sleeve
ADAPTFITT-PRINETO-W.SLEEVE-14-(V EURO)
Art.-no. 0878343329
EAN 4099618586316
Register now and access more than 125,000 products
- For direct connection of panel heating pipes and HD pipes to Eurocone 3/4 inch male threads
Datasheets(X)
Connection, tube diameter | 14 mm |
Connection thread | IT 3/4 inch Euro cone |
Surface | Nickel plated |
Material | Brass |
Distance between connection and connection (z) | 20 mm |
Colour | Nickel coloured |
Length (i) | 34 mm |
