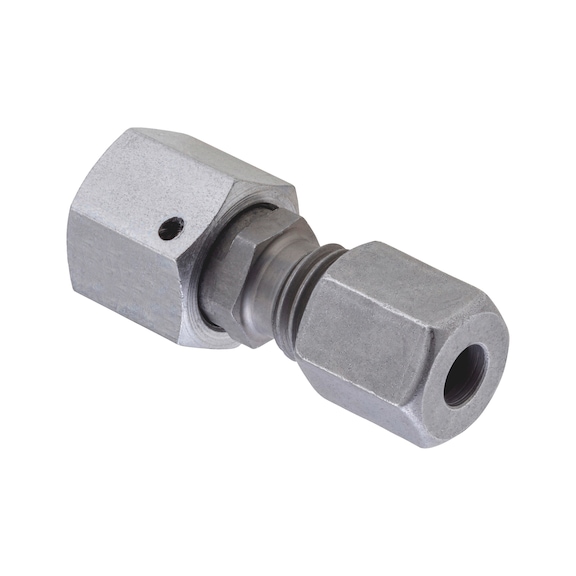

Adjustable straight sealing cone reducer fitting ISO 8434-1, zinc-nickel-plated steel, cutting ring connection with o-ring
Adj. sealing cone reduction fitting ST with O-ring
TUBFITT-ISO8434-S-RDSWC-ST-D30/D25
Register now and access more than 125,000 products
Datasheets(X)
 | |
Thread type x nominal diameter x pitch (T1) | M42 x 2 |
Thread type 2 x nominal diameter 2 x pitch 2 (T2) | M36 x 2 |
ISO | 8434 |
Nominal pressure PN | 420 |
Pipe diameter (D1) | 30 mm |
Diameter 2 (D2) | 20 mm |
Diameter 3 (D3) | 25 mm |
Width across flats (S1) | 41 mm |
Width across flats 2 (S2) | 50 mm |
Width across flats 3 (S3) | 46 mm |
Material | Steel |
Surface | Zinc nickel |
Length (L1) | 67.5 mm |
Length 2 (L2) | 45 mm |
