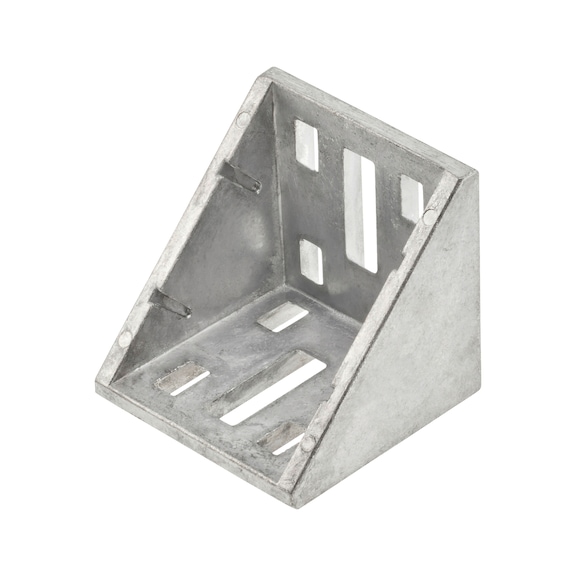

Aluminium bracket - ANGL-AL-BLK-SLOT10-57X57X58MM

Aluminium bracket - ANGL-AL-BLK-SLOT10-57X57X58MM - 1

Aluminium bracket

Name: Aluminium bracket
Brand: Würth
SKU: 4952500111

Bracket, aluminium
ANGL-AL-BLK-SLOT10-57X57X58MM

Art.-no. 4952500111

EAN 4056807471587

All versions

Similar products

Prices for customers after login

Aluminium bracket

Art.-no. 4952500111

Prices for customers after login

Quantity

x 10 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For the right-angled connection of two profiles and surface elements

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

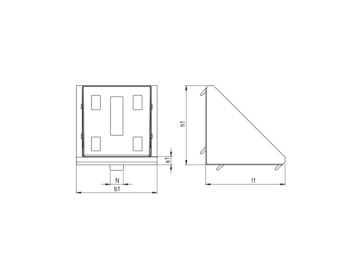

Profile type	B
Suitable for flute width (N)	10 mm
Material thickness (s₁)	6 mm
Length (l₁)	57 mm
Width (b₁)	58 mm
Height (h₁)	57 mm
Material	Aluminium die-cast
Surface	Plain
RoHS-compliant	Yes
Weight	109 g

Required accessory:

Product

Description

Quantity

Price
/PU

Plastic cover cap for aluminium bracket

CAP-B-PA-BLCK-ALUANGL-60

Art.-no. 4952500019

For the right-angled connection of profiles and surface elements

x 10 pcs
