Aluminium bracket set
Bracket aluminium set
ANGL-SET-AL-BLK-SLOT10-86X86X88MM
Art.-no. 4952500202
EAN 4056807471723
Register now and access more than 125,000 products
- The open side of the bracket can be sealed using the cover cap
Datasheets(X)
 | |
Material | Aluminium die-cast |
RoHS-compliant | Yes |

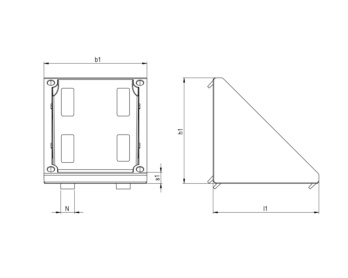

Profile type | B |
Suitable for flute width (N) | 10 mm |
Length (l1) | 86 mm |
Width (b1) | 88 mm |
Height (h1) | 86 mm |
Material thickness (s1) | 10 mm |
Elongated hole width (l2) | 9 mm |
Number of pieces in assortment/set | 17 PCS |
