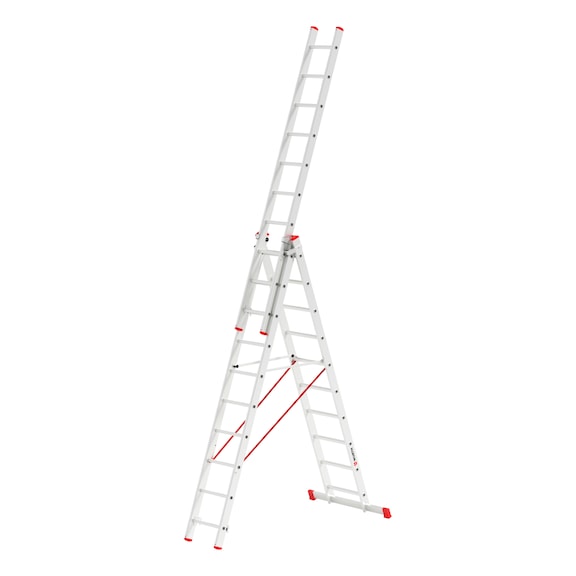

Aluminium combination ladder with rungs

Material

Aluminium

Number of rungs

3 x 10

Width

0.50 m

Traverse length

1.05 m

Traverse dimensions

70 x 25 mm

Beam dimensions

85 mm x 25 mm

Rung distance

280 mm

Rung dimensions

30 x 30 mm

Stand area according to TRBS 2121-2

No

Load capacity

150 kg

Min./max. length as standard ladder

2.91-6.83 m

Max. standing height as standard ladder

5.46 m

Max. working height as standard ladder

6.96 m

Max. reaching height as standard ladder

7.46 m

Dock height as leaning ladder (at 70° tilting)

6.42 m

Step ladder with sliding part: Min./Max. length

2.91-4.87 m

Step ladder with sliding part: Max. standing height

3.36 m

Stepladder with sliding part: Max. working height

4.86 m

Step ladder with sliding part: Max. reaching height

5.36 m

Step ladder with sliding part: Stride length

2.06 m

Step ladder with sliding part Min./max. height vertical

2.74-4.58 m

Step ladder without sliding part: Length

2.91 m

Step ladder without sliding part: Standing height

1.78 m

stepladder without sliding part: Working height

3.28 m

step ladder without sliding part: Reaching height

3.78 m

Step ladder without sliding part: Stride length

2.06 m

Step ladder without sliding part: Height vertical

2.74 m

Length sliding ladder single

2.91 m

Width sliding ladder single

0.35 m

Standing heigh sliding ladder single

1.78 m

Working height sliding ladder single

3.28 m

Reaching height sliding ladder single

3.78 m

Dock height sliding ladder single (at 70° tilting)

2.74 m

Transport dimension

2.92 x 0.51 x 0.24 m

Weight

23.2 kg

Standards

EN 131
