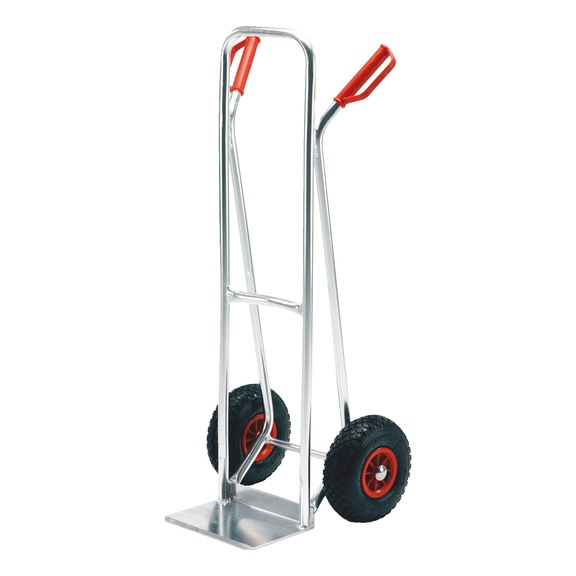

Aluminium stack trolley with tube bends - PSHCRT-ALU-PU-300X170MM

Aluminium stack trolley with tube bends

Aluminium stack trolley with tube bends
PSHCRT-ALU-PU-300X170MM

Art.-no. 0962400111
EAN 4048539433070
All versions

Prices for customers after login
Aluminium stack trolley with tube bends

Art.-no. 0962400111

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Lightweight sack truck for easy transportation of light and heavy objects
  • Permanently welded aluminium construction

  • Aluminium tube, diameter 25.0 x 2 mm

  • Base plate made from 4 mm thick sheet aluminium

  • Wheels fitted with plastic rims and roller bearings

  • Handles with safety bar made of high-strength plastic (in accordance with DIN EN 1757-3) protect against hand injuries
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Toe plate width

270 mm

Toe plate depth

240 mm

Toe plate thickness

4 mm

Load capacity

150 kg

Wheel diameter

260 mm

Wheel width

85 mm

Material of wheel

Polyurethane

Height

1150 mm

Handle height

1120 mm

Width

510 mm

Depth

460 mm

Pipe-wall thickness

2 mm

Pipe diameter

25 mm

Material of push cart scoop

Aluminium plate

Spare parts for this product:
Safety handle Made of high-strength plastic for steel-tube trolleys
Safety handle Made of high-strength plastic for steel-tube trolleys

SAFEHNDL-F.TRAN-RED

x 1 pcs
Staircase sliding skid For steel-tube trolley, includes two fastening clips
Staircase sliding skid For steel-tube trolley, includes two fastening clips

SKID-(F.STPIPCART-TRAN)-PLA

x 1 pcs
Pneumatic wheel With plastic rim for stack trolleys and sack trucks
Pneumatic wheel With plastic rim for stack trolleys and sack trucks

PNWHL-F.TRAN-260MM-BS22MM

x 1 pcs
Polyurethane wheel With plastic rim for stack trolleys and sack trucks
Polyurethane wheel With plastic rim for stack trolleys and sack trucks

TYR-PUR-F.TRAN-W.PLARIM-260MM-BS20MM

x 1 pcs
