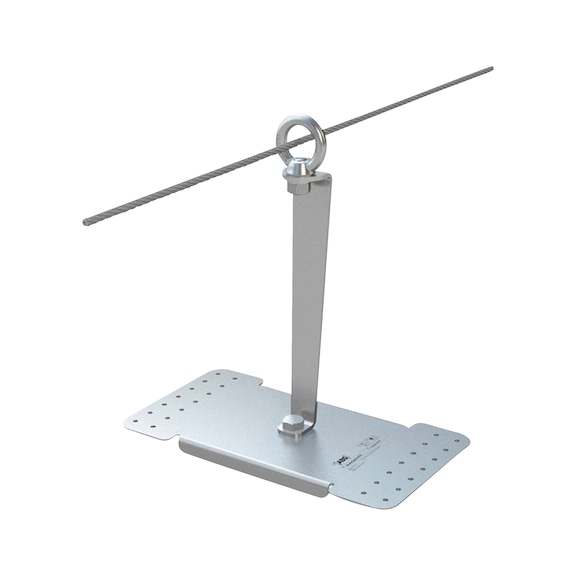

Anchor point ABS-Lock X, raised rivet
LOCK-X-RIVET-(LX-SW-N-ZW)-PROFILED-SHEET
Art.-no. 0838904222
EAN 4260336784050
Register now and access more than 125,000 products
Stainless steel anchoring point for reversely laid sandwich and metal box-profile roofing sheets, tested in accordance with EN 795 for 3 people at once. Can also be used as an anchor post (end, curve and intermediate post) for lifeline systems in accordance with EN 795 Class C.
- For sheet steel thicknesses above 0.45 mm, base plate 362 mm x 200 mm
- LX-SW-N-ZW = Intermediate bracket with weld-on lifting ring, incl. 150 mm height extension
- LX-SW-N-ZW-350 = Similar to LX-SW-N-ZW, incl. 350 mm height extension
- SY-1031-35 = Additional attachment lug e.g. for T-junctions or when the start and end of the rope are located on an X-rivet
Datasheets(X)
Material | Stainless steel |
EN standard | 795 |
Suitable for use in the following materials | Metal trapezoidal plate, Sandwich profile |
Type description | LX-SW-N-333-ZW-350 |
Height | 350 mm |
Colour | Stainless steel coloured |
Surface | Stainless steel FINISH |
