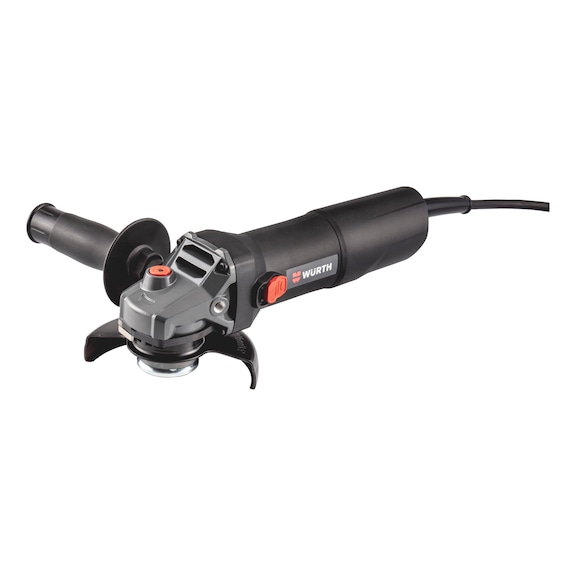

Angle grinder EWS 8-115 Light-S 850 W - ANGLGRIND-EL-EWS 8-115 LIGHT-S Angle grinder EWS 8-115 Light-S 850 W - ANGLGRIND-EL-EWS 8-115 LIGHT-S Angle grinder EWS 8-115 Light-S 850 W - ANGLGRIND-EL-EWS 8-115 LIGHT-S
Angle grinder EWS 8-115 Light-S 850 W - ANGLGRIND-EL-EWS 8-115 LIGHT-S - 1
Angle grinder EWS 8-115 Light-S 850 W - ANGLGRIND-EL-EWS 8-115 LIGHT-S - 2
Angle grinder EWS 8-115 Light-S 850 W - ANGLGRIND-EL-EWS 8-115 LIGHT-S - 3

Angle grinder EWS 8-115 Light-S 850 W

Angle grinder EWS 8-115 Light-S
ANGLGRIND-EL-EWS 8-115 LIGHT-S
MASTER

Art.-no. 57070140
EAN 4062856055999
All versions

Prices for customers after login
Angle grinder EWS 8-115 Light-S 850 W

Art.-no. 57070140

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Handy 850 Watt angle grinder with small grip circumference. Ideal for thin cuts and fine grinding
  • The powerful motor with good overload capability is ideal for light cutting work down to 0.8 mm, as well as light deburring work

  • Small grip circumference of 175 mm compared to predecessor (190 mm) enables effortless and comfortable working

  • Significantly lower risk of injury thanks to restart protection after power failure

  • Tool-free adjustment and anti-twist protective cover

  • Rear air inlets prevent the air inlets from being closed by hand, thereby improving the cooling of the angle grinder
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

Precise cuts in thin materials (up to 0.8 mm), fine grinding for reworking, sheet metalworking up to 0.2 mm, counter construction, enclosures, light deburring work (recommended: speed-regulated!), post-processing for panel overhangs

Nominal voltage

230 V/AC

Min./max. frequency

50 / 60 Hz

Protection class

Protection class II/protective insulation

Power input

850 W

Max. idle speed

11.500 rpm

Max. cutting disc diameter.

115 mm

Thread type x spindle-thread diameter

M14

Weight of machine

1.8 kg

Cable length

4 m

Functions

Restarting protection

Angle grinder EWS 8-115 Light-S 850 W including:
Handle
1 x
Handle

CATCH

Quantity: 1 x
Clamping nut
1 x
Clamping nut

CLMPNUT-F.ANGLGRIND

Quantity: 1 x
Angle grinder protective panel on both sides WSH 230
1 x
Angle grinder protective panel on both sides WSH 230

PROTCOV-F.ANGLGRIND-D115

Description: For working with fibre-reinforced resin-bonded cutting discs
Quantity: 1 x
Face spanner
1 x
Face spanner

FCEWRNCH-F.ANGLGRIND

Quantity: 1 x
