BP-S-H/TZN post support - POSTHOLD-CONCA-HDG-SWORD110-(H200-270)

BP-S-H/TZN post support

Name: BP-S-H/TZN post support
Brand: Würth
SKU: 0681490272

Post support BP-S-H/TZN
POSTHOLD-CONCA-HDG-SWORD110-(H200-270)

Art.-no. 0681490272

EAN 4011231561143

All versions

Similar products

Individual price display after login

BP-S-H/TZN post support

Art.-no. 0681490272

Individual price display after login

Quantity

x 10 pcs

Exclusively for trade customers

Login/Register
Call customer service:

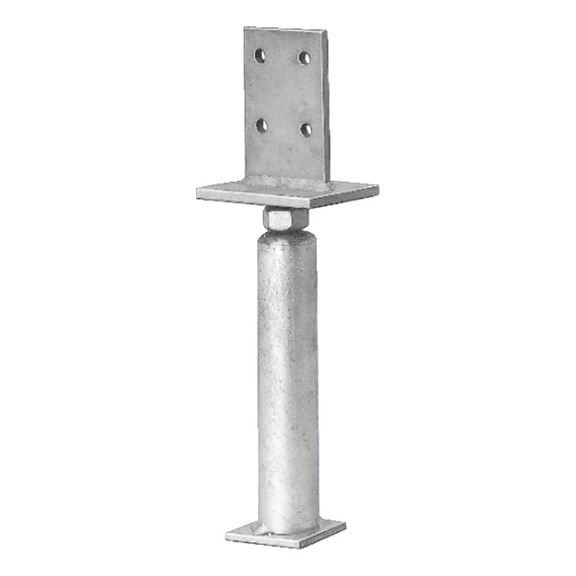

Extra-robust and height-adjustable T blade post support . Can be embedded in concrete. Ideal for heavy structures with high aesthetic requirements.

Height can be adjusted when installed

Concealed T blade post support

For embedding in concrete

High load capacity due to robust 42 mm tubular sleeve and large base plate

Variable height adjustment

Long service life due to subsequent thermal hot-dip galvanisation

Material: Steel

Surface: Full hot-dip galvanisation

Notice

The diameter of the dowel pin must only be max. 1 mm smaller than the diameter of the hole.

Secure anchorage of the post support in the base material or ground must be verified separately.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For anchoring posts of heavy timber structures to the foundation.

Instructions

Anchored by embedding directly in concrete or using a sleeve foundation.

Recommended concrete embedding depth: approx. 150 mm

Suitable fasteners:

Dowel pins: D = 8 mm


Design	For static purposes
Form	Blade shape
Strut dimensions	70 x 110 x 8 mm
Diameter of hole	9 mm
Holder plate dimensions	100 x 80 x 8 mm
Length	332 mm
Type description	VRS 1
Unextended height	222 mm
Required steel dowels	4 piece, diameter 8 mm
Suitable for min. post cross-section	80 x 100 mm
Baseplate format	60 x 60 x 4 mm
Length of rowlock (concrete)	200 mm
Diameter of rowlock (concrete)	42 mm
Number of D 9 mm holes	4 PCS
Material	Steel
Surface	Hot dip galvanized
Use class	3
Min. recommended depth of encasement in concrete	150 mm
Number of pieces	2 PCS
Weight	2099 g

Required accessory:

Product

Description

Quantity

Price
/PU

Dowel pins

RODPLG-(A2K)-8X65MM

Art.-no. 0681008065

Fastener between steel parts, such as post support brackets with strut and wood ties

x 100 pcs

Dowel pins

RODPLG-(A2K)-8X90MM

Art.-no. 0681008090

Fastener between steel parts, such as post support brackets with strut and wood ties

x 100 pcs

Dowel pins

RODPLG-(A2K)-8X115MM

Art.-no. 0681008115

Fastener between steel parts, such as post support brackets with strut and wood ties

x 100 pcs
