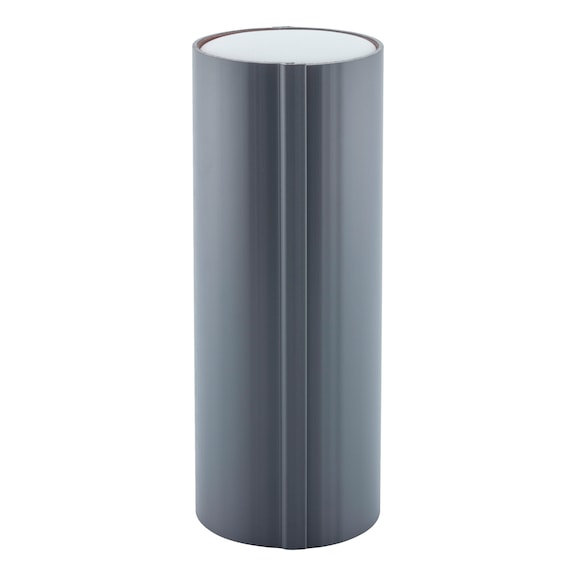

Cable duct - CBL-PIP-300X125 - 5
Cable duct - CBL-PIP-300X125 - 1
Cable duct - CBL-PIP-300X125 - 2

Cable duct

Cable pipe
CBL-PIP-300X125

Art.-no. 0893305750
EAN 4053479058009
All versions
Prices for customers after login
Cable duct

Art.-no. 0893305750

Prices for customers after login
Quantity
PU

Exclusively for trade customers

Register now and access more than 125,000 products

The cable duct consists of two half shells lined with an insulating layer that can be snapped together, plus two soft foam stoppers.
  • Easy installation, even on existing cables

  • Cable ducts can be arranged in groups according to Z-19.53-2499

  • Extremely easy to retrofit

  • No cable coating

  • 100 % occupancy

  • Single cables, cable bundles, empty partition

  • Plastic electrical installation pipes up to 32 mm ∅, also as a bundle <= 100 mm

  • No reveal formation necessary in non-load bearing partitions
Notice

For detailed information on the cable insulation, please refer to the general type approval Z-19.53-2366.

The cable conduit meets the fire resistance class 'fire-resistant'. For detailed information on the cable insulation, please refer to the general type approval Z-19.53-2399.

Application area

For use in system [B2]



  • Cable partition in solid walls and ceilings and in non-load bearing partitions. The cable conduit meets the fire resistance rating for 90 minutes (fire resistant).

  • For electrical cables, cable bundles, electrical installation pipes, plastic pipes and line combinations (split).

Form

Round

Diameter

125 mm

Length

300 mm

Fire resistance rating

Fire resistant

Product information

Datasheets (0)

Certificates/ Documents (0)

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Ablative coating I
Ablative coating I

ABLATCOAT-F.CBLPIP-300ML

Ablative coating for cable duct system B2
Soft foam plugs For cable conduits
Soft foam plugs For cable conduits

SOFTFMPLG-F.CBLPIP-110X40MM

Soft foam plug for cable ducts in B2 system
Assembly kit for B2 system cable duct
Assembly kit for B2 system cable duct

ASMBY-SET-F.CBLPIP-B2
