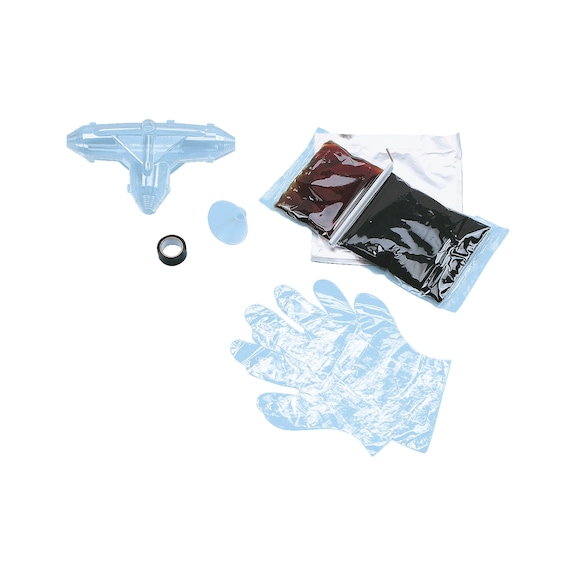

Casting resin branch set AB 0.6-1 kV - JUNCSLEV-CASTRESIN-AB2-(16-35MM)

Casting resin branch set AB 0.6-1 kV - JUNCSLEV-CASTRESIN-AB2-(16-35MM) - 1

Casting resin branch set AB 0.6-1 kV - JUNCSLEV-CASTRESIN-AB2-(16-35MM) - 2

Casting resin branch set AB 0.6-1 kV

Name: Casting resin branch set AB 0.6-1 kV
Brand: Würth
SKU: 0890450015

Casting resin, branch fitting AB 1-2
JUNCSLEV-CASTRESIN-AB2-(16-35MM)

Art.-no. 0890450015

EAN 4024835202930

All versions

Prices for customers after login

Casting resin branch set AB 0.6-1 kV

Art.-no. 0890450015

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Suitable for connecting plastic-insulated cables up to 1 kV

Advantages of casting resin branch set AB (incl. casting resin type WÜ):

Completely watertight both horizontally and longitudinally

Approved in accordance with DIN VDE 0165 for areas at risk of explosion

High mechanical strength

Advantages of casting resin type WÜ:

The casting resin corresponds to DIN VDE 0291 Part 2 and is suitable up to 10 kV.

Highly hydrolysis-resistant

Long storage life (24 months)

Good resistance to UV radiation and chemical influences

Low viscosity

Excellent adhesion to metals and plastics

Soft-elastic after hardening

DIN VDE 0278

Product information

Würth Catalogue

Datasheets(X)

Safety data sheet 1

Safety data sheet 2

Certificates/ Documents

Application areaThey can be installed outside, underground, in water, indoors and in cable routing conduits.

Type description	AB 2
Min./max. cable diameter	16-35 mm
Main cable type	5 x 6 - 16 mm²
Stub cable type	5 x 6 - 16 mm²
Length x width x height	270 x 160 x 80 mm

Suitable glove:

Product

Description

Nitrile chemical protective glove With cotton velour finish inside

Description:

Permeation level: 1

Nitrile chemical protective glove Long, heavy-duty design

Description:

Permeation level: 2

Permeation is the process by which a chemical moves through the material of a protective glove on a molecular level. The time from the initial contact between the chemical and the glove to the permeation of the material is the breakthrough time.

Measured breakthrough time

Permeation level

< 10 min

≥ 10 min

≥ 30 min

≥ 60 min

≥ 120 min

≥ 240 min

≥ 480 min

Important information:

The information given is based on experience and laboratory conditions and is designed as a guide. However, the actual suitability of a glove depends on the individual conditions of its use and must be confirmed by an appropriate test under operational conditions. Given the variety of materials and chemicals used, the possibility of incompatibility or usage problems for the wearer cannot be excluded in individual cases. We would be happy to advise you about optimum solutions.
