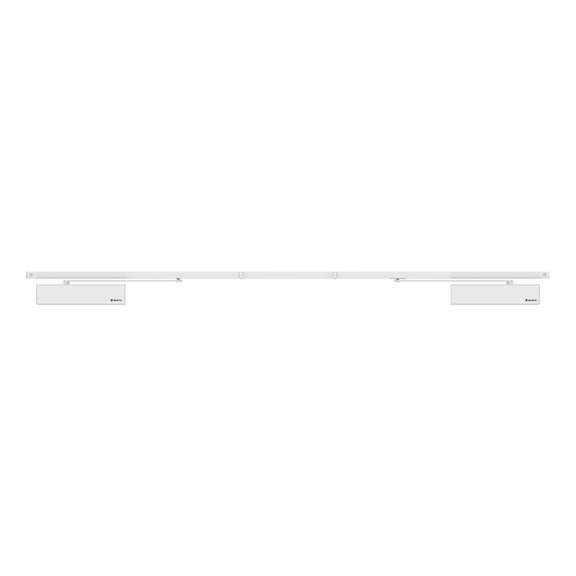

Closing sequence control with GTS 640

Closing sequence selector with GTS 640
CSEQ-GTS640-WHITE

Art.-no. 0688003712
EAN 4061975573087

Prices for customers after login
Closing sequence control with GTS 640

Art.-no. 0688003712

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

For double-leaf doors which can be used on DIN L and DIN R. The DIN direction can be selected on site
  • Barrier-free in accordance with Spec 18040 and DIN SPEC 1104

  • Quick mounting using only two screws per slide rail

  • Using the supplied base bracket enables the same drilling pattern as with the slide rails for the door closer

  • Central cover with innovative lock-in system

  • Eliminates cumbersome screw connections

  • Closing sequence is adjusted by turning a square bar

  • Quick and easy assembly, vandal-proof and withstands overpressure

  • Complete set
Notice

Delivery time for traffic white RAL 9016 and stainless steel surfaces approx. 10 working days

Application area

Dimensions subject to change. Subject to technical changes.

Product information

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For double leaf fire, smoke and anti-panic protection doors made of metal or wood.



The closing sequence selector ensures that the closing sequence of the inactive and active leaves occurs in the specified order. In other words, the active leaf always closes after the inactive leaf. When opening the inactive leaf, brake wedges in the active leaf slide rail ensure that the active leaf remains stationary.

Area of application

Object area, Private area

Suitable for

Fire protection doors, Smoke protection doors, Panic doors, Profiled frame doors

Suitable for number of doors

2

Fire protection certified

Yes

Suitable for barrier-free construction according to DIN 18040

Yes

Colour

Traffic white RAL 9016

Colour slide rail

Traffic white RAL 9016

Gloss level

0 - not applicable

Min./max. distance between hinges

1370-2500 mm

Suitable for min./max. door width of active leaf

850-1250 mm

Suitable for min./max. door width of inactive leaf

400-1250 mm

DIN direction

DIN R/L

Mounting option

Hinge side: standard mounting, With assembly base plate

Opening angle

170 Degree

Min./max. door closer size

2-5

Material

Aluminium / plastic / steel

Surface

Lacquered

Suitable for min./max. door thickness

40-120 mm

Locking range

0 - not applicable

Closing speed

Infinitely adjustable by valve 170° - 0 ° hinge side normal assembly

Closing delay

Infinitely adjustable by valve 120° - 70 ° hinge side normal assembly

Latching speed

Infinitely adjustable by valve 10° - 0 °

Back-check action

Infinitely variable adjustable from 70 °

Min./max. temperature conditions

-15 to 40 °C

Standards

EN 1154:1996 + A1:2002, EN 1158:1997 + A1:2002, EN 16034, EN 16035, DIN SPEC 1104

EC declaration of conformity (CE)

Yes

Environmental Product Declaration

Yes

Construction product

Yes

Included in delivery

2 x door closers, 2 x mounting base plates, 3 x sliding rails with basic profile, 2 x sliding rail arms, 1 x fastening material and installation instructions

Technical information
BA = hinge spacing
* = If the hinge spacing is smaller, the active-leaf hinge can be shortened by up to 120 mm
G = Active leaf
S = Inactive leaf
Classification key according to DIN EN 1154: 1996 + A1:2002
3/4 8 2 - 5 1 1 4
