Corner bracket, die-cast zinc

Name: Corner bracket, die-cast zinc
Brand: Würth
SKU: 4952600221

Corner bracket, die-cast zinc
CORNANGL-ZN-BLK-SLOT6-M6-27,5X27,5MM

Art.-no. 4952600221

EAN 4056807472133

All versions

Specification

For right-angled connection of up to three aluminium profiles

Technical information

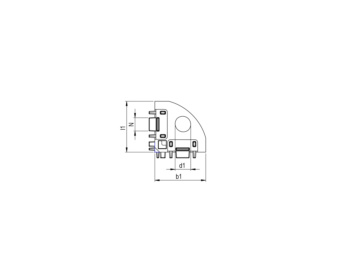

Profile type	I
Suitable for flute width (N)	6 mm
Length (l₁)	27.5 mm
Width (b₁)	27.5 mm
Drill hole diameter (d₁)	6.5 mm
Material	Die-cast zinc
Surface	Plain
RoHS-compliant	Yes

Documents

Product information

Datasheets (0)

Certificates/ Documents (0)

Accessory

Additional accessory:

Product

Description

Quantity

Price
/PU

Plastic cover cap for corner bracket

CAP-I-PA-BLCK-CRNANGL-30

Art.-no. 4952600017

To cover the open side of the corner bracket

x 50 pcs
