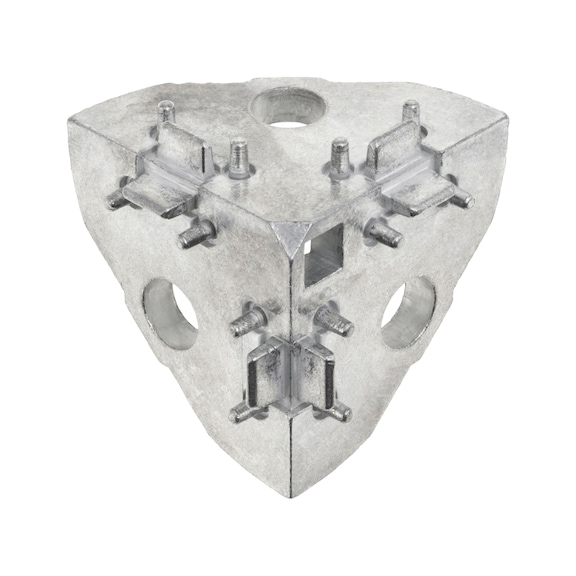

Corner bracket, die-cast zinc - CORNANGL-ZN-BLK-SLOT8-M8-37,5X37,5MM

Corner bracket, die-cast zinc

Name: Corner bracket, die-cast zinc
Brand: Würth
SKU: 4952600222

Corner bracket, die-cast zinc
CORNANGL-ZN-BLK-SLOT8-M8-37,5X37,5MM

Art.-no. 4952600222

EAN 4056807472140

All versions

Similar products

Individual price display after login

Corner bracket, die-cast zinc

Art.-no. 4952600222

Individual price display after login

Quantity

x 50 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For right-angled connection of up to three aluminium profiles

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Profile type	I
Suitable for flute width (N)	8 mm
Length (l₁)	37.5 mm
Width (b₁)	37.5 mm
Drill hole diameter (d₁)	9 mm
Material	Die-cast zinc
Surface	Plain
RoHS-compliant	Yes

Additional accessory:

Product

Description

Quantity

Price
/PU

Plastic cover cap for corner bracket

CAP-I-PA-BLCK-SCHW-CRNANGL-40

Art.-no. 4952600019

To cover the open side of the corner bracket

x 50 pcs

Plastic cover cap for corner bracket

CAP-I-PA-BLCK-CRNANGL-45°-40

Art.-no. 4952600021

To cover the open side of the corner bracket

x 50 pcs
