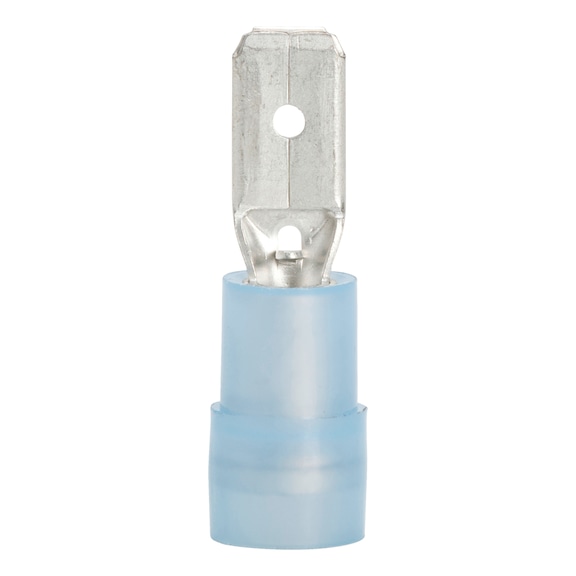

Crimp cable lug, blade connector Polyamide insulated

Name: Crimp cable lug, blade connector Polyamide insulated
Brand: Würth
SKU: 0967408253

Crimp cable lug insulated flat plug
CRMPCBLLUG-TABCON-4,8X0,5MM-2,5SMM

Art.-no. 0967408253

EAN 4056807775999

All versions

Similar products

Prices for customers after login

Crimp cable lug, blade connector Polyamide insulated

Art.-no. 0967408253

Prices for customers after login

Quantity

x 100 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Expanded insulating sleeve

Harmonised conductors with stronger cable core insulation can be processed without a problem.

"Easy Entry" insertion

Easy, fast and safe insertion of the conductor

High-quality polyamide

Suitable for use in situations involving changing loads and temperature fluctuations

Notice

The fitter must check the inserted cable (using a pull-out test, if required).

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For fine and very fine core copper conductors

Min./max. wire cross section	1.5-2.5 mm²
Colour	Blue
Nominal size of flat plug/push connector/blade connector	4.8 x 0.5 mm
Length	19.2 mm
Max. nominal voltage	300 V/AC
Max. temperature conditions	105 °C
Material	Copper
Surface	Tin plated
Insulating material	Nylon
Halogen-free	Yes
Silicone-free	Yes

Required accessory:

Product

Description

Quantity

Price
/PU

Crimping tool For insulated connectors

CRMPPLRS-(INSU-CON)-(0,5-6,0SMM)

Art.-no. 0714106111

Premium manual crimping tool made in Germany

x 1 pcs

Automatic self-adjusting wire stripping pliers

WRESTRPLRS-AUTM-SLFADJ-(0,03-10,0SMM)

Art.-no. 0714109010

Automatic scanning system, no adjustment to cable cross-section is necessary

x 1 pcs
