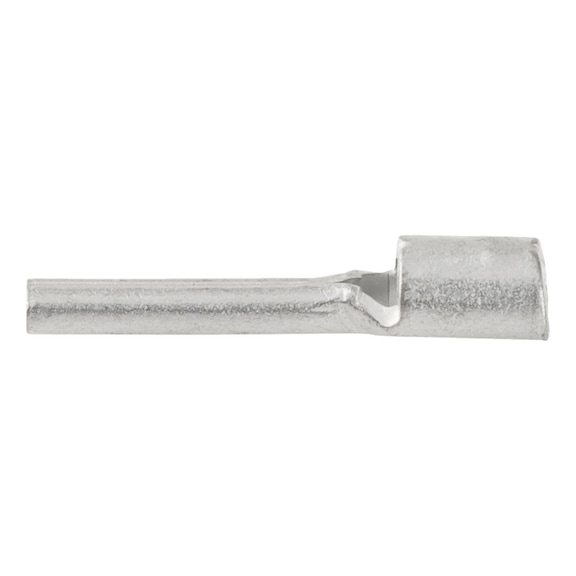

Crimp cable lug, pin shape DIN 46230 and similar - CRMPCBLUG-PIN-46230-CU-(J2N)-(0,5-1SMM)

Crimp cable lug, pin shape DIN 46230 and similar

Name: Crimp cable lug, pin shape DIN 46230 and similar
Brand: Würth
SKU: 56336010

Crimp cable lug pin shape
CRMPCBLUG-PIN-46230-CU-(J2N)-(0,5-1SMM)

Art.-no. 56336010

EAN 4056807776279

All versions

Similar products

Prices for customers after login

Crimp cable lug, pin shape DIN 46230 and similar

Art.-no. 56336010

Prices for customers after login

Quantity

x 100 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For multi, fine, and very fine-wired copper conductors, e.g. according to DIN EN 60228 Class 2, 5, and 6

Notice

The user must check the inserted cable (using a pull-out test, if required)

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Min./max. wire cross section	0.5-1 mm²
Wire diameter (d1)	1.6 mm
Sleeve length	5 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin plated
Width of pin	1.9 mm

Required accessory:

Product

Description

Quantity

Price
/PU

Automatic self-adjusting wire stripping pliers

WRESTRPLRS-AUTM-SLFADJ-(0,03-10,0SMM)

Art.-no. 0714109010

Automatic scanning system, no adjustment to cable cross-section is necessary

x 1 pcs

Crimping tool For uninsulated connectors

CRMPPLRS-(UNINSU-CON)-(0,5-10,0SMM)

Art.-no. 0714104111

Premium manual crimping tool made in Germany

x 1 pcs
