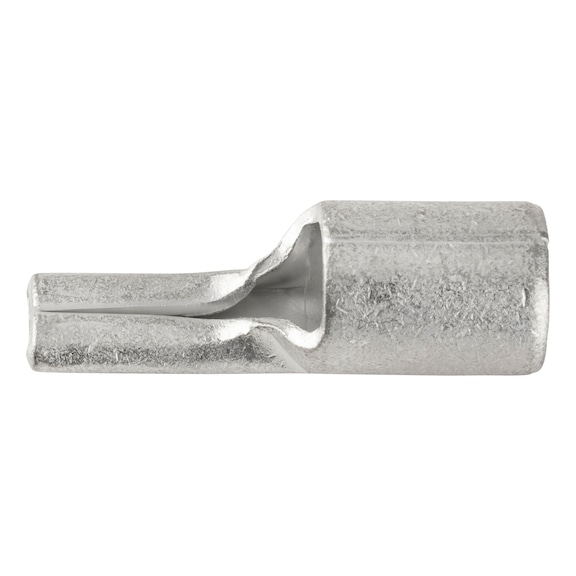

Crimp cable lug, pin shape DIN 46230 and similar - CRMPCBLUG-PIN-46230-CU-(J2N)-(95,0SMM)

Crimp cable lug, pin shape DIN 46230 and similar

Name: Crimp cable lug, pin shape DIN 46230 and similar
Brand: Würth
SKU: 56336950

Crimp cable lug pin shape
CRMPCBLUG-PIN-46230-CU-(J2N)-(95,0SMM)

Art.-no. 56336950

EAN 4056807776361

All versions

Similar products

Prices for customers after login

Crimp cable lug, pin shape DIN 46230 and similar

Art.-no. 56336950

Prices for customers after login

Quantity

x 25 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For multi, fine, and very fine-wired copper conductors, e.g. according to DIN EN 60228 Class 2, 5, and 6

Notice

The user must check the inserted cable (using a pull-out test, if required)

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Wire cross section	95 mm²
Wire diameter (d1)	13.5 mm
Sleeve length	24 mm
Max. temperature resistance	125 °C
Material	Electrolytic copper
Surface	Tin plated
Width of pin	12.5 mm

Required accessory:

Product

Description

Quantity

Price
/PU

Hydraulic crimping tool, WHK 60/22 For half-shell crimping inserts, width 22 mm

CRMPTL-HYDR-WHK60/22-(6-300SMM)

Art.-no. 0967080120

x 1 pcs

Half-shell pin crimping insert

CRMPINRT-F.MNDRLCRMP-95SMM

Art.-no. 0967086095

22 mm wide

x 1 pcs

Stripping knife AM 280

WRESTRKNFE-HOKBLDE-AM280-(8-28MM)

Art.-no. 071441 01

Soft-component inserts on strap and handle guarantee maximum grip

x 1 pcs

Cable sheath slitter

CBLSHTHCTR-219GR

Art.-no. 071441 09

For removing all insulation layers from cables of ∅ ≥25 mm external.

x 1 pcs

Mechanical manual crimping pliers WK 22 For replaceable half-shell crimping inserts, width 22 mm

HNDCRMPTL-MECH-(6-300SMM)

Art.-no. 0967080100

x 1 pcs
