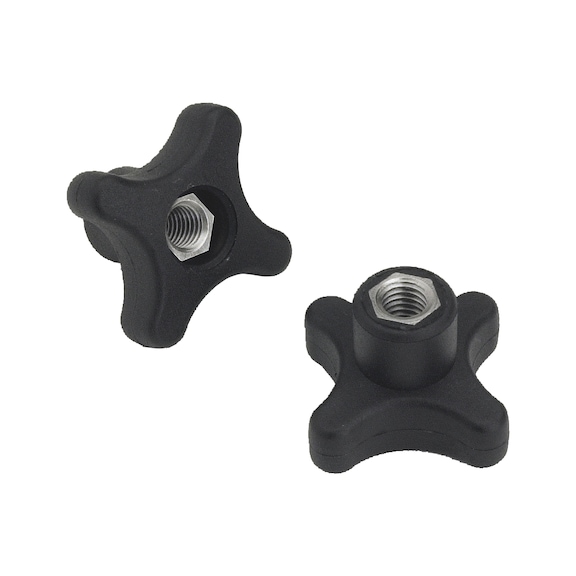

Cross handle with continuous insert nut
Polyamide with continuous A1 insert nut
CRSHNDL-40-BLCK-THRGHO-INRT-A1-M10
Art.-no. 5094604110
EAN 4053479889269
Register now and access more than 125,000 products
 | |
Material of handle | PA - Polyamide |
Surface of the handle | Satined |
Material of screwing thread | Stainless steel A1 |
Surface of the screwing thread | Plain |
Thread type x nominal diameter (d1) | M10 |
Bush outer diameter (d3) | 16 mm |
Head diameter (dk) | 40 mm |
Thread length (lg) | 18 mm |
Height | 25 mm |
Bush length (h3) | 13 mm |
Handle thickness (c) | 12 mm |
Product weight (per item) | 16.000 g |
