DALI dimmer switch for EASYLUX 12 V

Name: DALI dimmer switch for EASYLUX 12 V
Brand: Würth
SKU: 0976521421

SWTCH-EL-DALI-CONTROLLER-12V

Art.-no. 0976521421

EAN 4068362383199

All versions

Similar products

Individual price display after login

DALI dimmer switch for EASYLUX 12 V

Art.-no. 0976521421

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For controlling 12 V LED lights via DALI bus, phase control, AC push or 0-10 V

Connection options

DALI bus

Phase control

AC push

0-10 V

Functions

Switching on and off

Dimming

Dimensions subject to change. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Input voltage	12 V/DC
Output voltage	12 V/DC
Max. output power	72 W
Connection type (primary)	Plug-in system WPS-12
Connection type (secondary)	Plug-in system WPS-12
Cable length (primary)	480 mm
Cable length (secondary)	480 mm
Number of connections	8
Material of housing	Plastic
Colour of housing	White

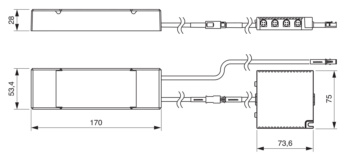

Length	170 mm
Width	53.4 mm
Height	28 mm
Min. frequency	50 Hz
Max. frequency	60 Hz
IP protection class	IP 20
Protection class	Protection class II/protective insulation

Required accessory:

Product

Description

Quantity

Price
/PU

EASYLUX LED transformer

TRAFO-EASYLUX-18W

Art.-no. 0976520000

Suitable for 12 V (18 W-60 W) and 24 V (18 W-120 W) luminaires

x 1 pcs

EASYLUX LED transformer

TRAFO-EASYLUX-36W

Art.-no. 0976520001

Suitable for 12 V (18 W-60 W) and 24 V (18 W-120 W) luminaires

x 1 pcs

EASYLUX LED transformer

TRAFO-EASYLUX-48W

Art.-no. 0976520002

Suitable for 12 V (18 W-60 W) and 24 V (18 W-120 W) luminaires

x 1 pcs

EASYLUX LED transformer

TRAFO-EASYLUX-60/72W

Art.-no. 0976520003

Suitable for 12 V (18 W-60 W) and 24 V (18 W-120 W) luminaires

x 1 pcs

Connection line for EASYLUX LED transformer

CONLNE-DRIVER-EASYLUX-EUROPLUG-2M

Art.-no. 0976520010

For connecting the EASYLUX LED transformer to the mains

x 1 pcs

EASYLUX 12 V LED distributor module

DISTRMOD-EASYLUX-12V

Art.-no. 0976520020

For connection to the EASYLUX LED transformer, for 12 V LED lights

x 1 pcs
