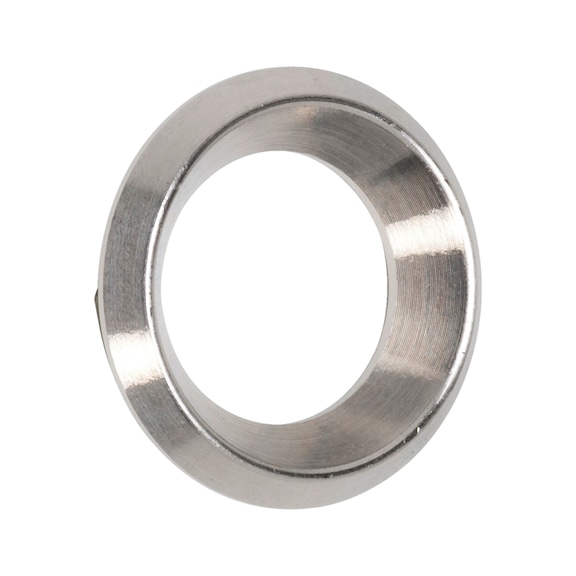

Decorative ring - DH-A2-ROS-OUTS-25MM-MATT Decorative ring - DH-A2-ROS-OUTS-25MM-MATT
Decorative ring - DH-A2-ROS-OUTS-25MM-MATT - 1
Decorative ring - DH-A2-ROS-OUTS-25MM-MATT - 2

Decorative ring

Decorativve ring for tubular frame door
DH-A2-ROS-OUTS-25MM-MATT

Art.-no. 0687282090
EAN 4057708384068
All versions

Prices for customers after login
Decorative ring

Art.-no. 0687282090

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

  • The decorative ring is mounted on the outside of the door instead of a PZ rosette

  • All you see on the outside of the door is the barrel core of the profile cylinder
Notice

Please use a ∅ 21 +/- 0.05 mm drill for the drill hole in the door panel. The decorative ring must be glued in.

Specified dimensions not binding. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For living areas and public areas (tubular frame doors, profile doors), front doors and side entrance doors.

Punched-hole

0 - not applicable

Area of application

Object area, Private area, Outdoors

Rosette thickness

2.7 mm

Suitable for

House doors, Profiled frame doors, Tubular door frames

Design

0 - not applicable

Fire protection certified

No

Shape of door handle

0 - not applicable

Bearing Technology

0 - not applicable

Material

Stainless steel A2, 1.4301

Gloss level

Matt

Surface

0 - not applicable

Colour

0 - not applicable

DIN direction

DIN R/L

Utilisation category

0 - not applicable

Environmental Product Declaration

No

Type of assembly

Fit with adhesive

Square size

0 - not applicable

Spindle

0 - not applicable

Rosette diameter

25 mm

Knob/handle plate/loop handle

0 - not applicable
