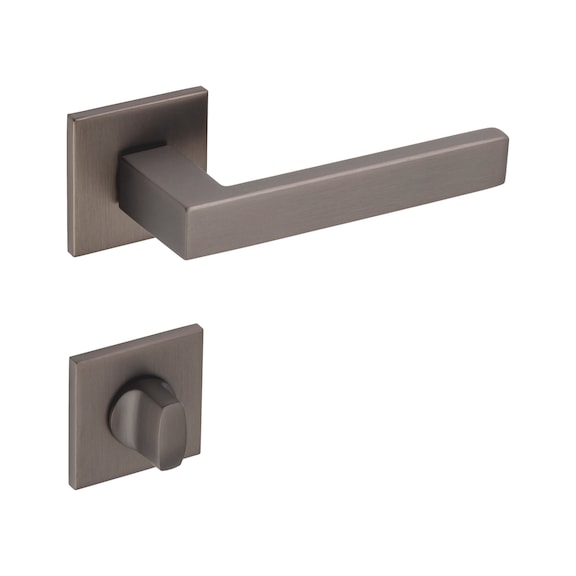

Door handle A 275

Name: Door handle A 275
Brand: Würth
SKU: 0688152691

Door handle A 275
DH-A2-A275-CLICKFIX-ROS-WC-TITAN-SATNFIN

Art.-no. 0688152691

EAN 4099618435836

All versions

Similar products

Prices for customers after login

Door handle A 275

Art.-no. 0688152691

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Quick, easy and safe installation of door handles

Innovative 5 mm rosette with one-sided pressure spring technology ensures that the door handle returns to the horizontal position after being pressed

Click Fix: The fast, tool-free quick pin connection: The pair of door handles can be easily pushed on only after the installation of the two rosettes

No more annoying visible connecting screw

Meets higher requirements than EN 1906 Class 3

Simple installation of the rosettes because handles and base rosette are installed separately for greater ease of access

Fastened end-to-end using tapping screws

High-quality handle bearing: Clearance-free connection with angular movement ≤ 1 mm between the handle and motion element in the rosette ensures stability during use

Notice

With this pair of door handles, the square solid spindle is always located securely in the door handle on one side. A steel door/solid spindle ■ 8 mm is screwed into the knobs of the lever/handle set.

Dimensions subject to change. Subject to technical changes

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Colour	Titangrey
Gloss level	Satin
Punched-hole	WC/bathroom
Suitable for	Toilet and bathroom doors
Fitting version	Handle/handle
Distance (from handle to lock)	78 mm
Fire protection certified	No
Shape of door handle	0 - not applicable
Bearing Technology	Door handle, loose, Spring-mounted, ClickFix rapid assembly
Material	Stainless steel A2, 1.4301
Material of basic rosette	Glass fiber reinforced plastic plastic
Suitable for min./max. door thickness (TS)	38-42 mm
DIN direction	DIN R/L
Standards	EN 1906
Utilisation category	Class 3
Environmental Product Declaration	No
Type of assembly	Continuous fastening
Square size	8 mm
Spindle	0 - not applicable
Handle length	130 mm
Door handle mount diameter	15.9 mm
Handle height inc. rosette/ label	50 mm
Knob/handle plate/loop handle	0 - not applicable
Length of rosette	52 mm
Width of rosette	52 mm
Rosette thickness	5 mm
Cam diameter	7.5 mm
Hole distance	38 mm

Classification key according to DIN EN 1906: 2012-12
3	7	-	0	0	5	0	B
High-grade steel and satin black

Titanium grey
