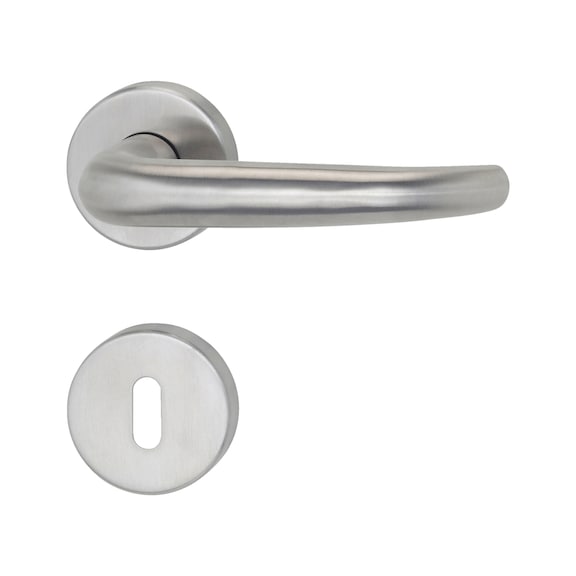

Door handle A 410 - DH-A2-A410-ROS-KH-MATT Door handle A 410 - DH-A2-A410-ROS-KH-MATT
Door handle A 410 - DH-A2-A410-ROS-KH-MATT - 1
Door handle A 410 - DH-A2-A410-ROS-KH-MATT - 2

Door handle A 410

Rosette fitting A 410
DH-A2-A410-ROS-KH-MATT

Art.-no. 0687153100
EAN 4053479228471
All versions

Prices for customers after login
Door handle A 410

Art.-no. 0687153100

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Simple assembly and best possible hold


Handles and base rosette are mounted separately for easier access and are attached end-to-end using metric screws.



High-quality handle mount


Clearance-free connection with angular movement ≤ 1 mm between the handle and motion element in the rosette ensures stability when used. The door handle is also ball bearing-mounted on each side with a retaining spring.



Tested long-term functionality


Maximum requirement according to EN 1906 is 200,000 cycles, whereas this door handle has been tested to 1,000,000 cycles.

Notice

Door handle fittings include an unmounted square spindle or steel door spindle with front drill hole ■ 8 mm.

Classification key: 3 | 7 | - | 0 | 0 | 3 | 0 | B


Category of use: 3


Long-term functionality: 7


Door dimensions: -


Fire resistance: 0


Safety: 0


Corrosion resistance: 3


Anti-burglary protection: 0


Construction type: B

Specified dimensions not binding. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area

For property sector, e.g. office, WC/bathroom and apartment entrance doors

Punched-hole

KI

Fitting version

Handle/handle

Suitable for

Office doors, Surgery doors, Interior doors

Distance (from handle to lock)

72 mm

Fire protection certified

No

Shape of door handle

Ulm handle

Bearing Technology

Door handle, loose, Spring-mounted, Ball-bearing

Material

Stainless steel A2, 1.4301

Material of basic rosette

Glass fiber reinforced plastic plastic

Gloss level

Matt

Suitable for min./max. door thickness (TS)

36-45 mm

DIN direction

DIN R/L

Standards

EN 1906

Utilisation category

Class 3

Environmental Product Declaration

No

Type of assembly

Continuous fastening

Square size

8 mm

Insertion depth

49 mm

Handle length

135 mm

Door handle mount diameter

15.9 mm

Handle height inc. rosette/ label

64.5 mm

Rosette/ shield shape

Rosette round

Rosette diameter

54 mm

Rosette thickness

9.5 mm

Cam diameter

7.5 mm

Hole distance

38 mm
