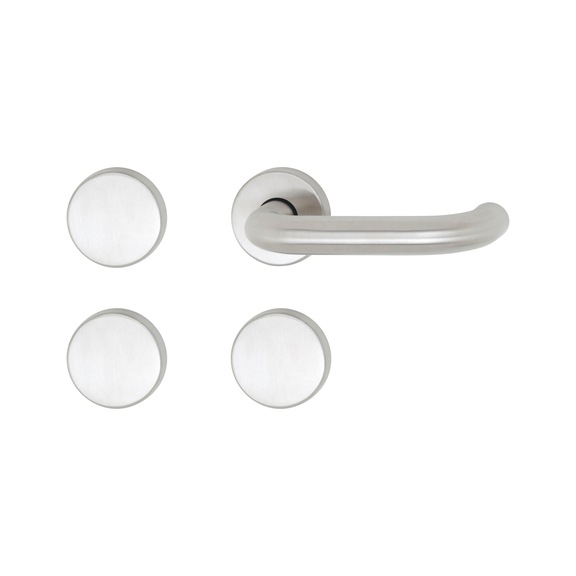

Door handles A 502 FS

Name: Door handles A 502 FS
Brand: Würth
SKU: 0687155006

Rosette fitting A 502 FS
DH-A2-A502/FS-STANDFLG-MATT

Art.-no. 0687155006

EAN 4038898538547

All versions

Specification

Fire protection tested, meets the valid requirements for fire protection and escape doors

The handle and base rosette are securely connected with pivoting mounting for the best possible hold

The continuous screw connection with metric screws and support cam provide optimal support for the rosette

Notice

The door handle includes an unmounted square solid pin or solid spindle ■ 9 mm with M8 or M12 thread.

Dimensions subject to change. Subject to technical changes.

Application area

For public areas, e.g. fire doors, panic doors and smoke protection doors.


Fire protection certified	Yes
Fitting version	Handle/blind
Suitable for	Fire protection doors, Smoke protection doors
Punched-hole	PC
Distance (from handle to lock)	72 mm
Shape of door handle	U
Bearing Technology	Door handle, fixed, With plastic bearing
Material	Stainless steel A2, 1.4301
Gloss level	Matt
Suitable for min./max. door thickness	40-65 mm
DIN direction	DIN R/L
Standards	EN 1906, DIN 18273
Utilisation category	Class 4
Environmental Product Declaration	Yes
Type of assembly	Continuous fastening
Square size	9 mm
Spindle	With M8 thread
Insertion depth	37 mm
Handle length	141 mm
Handle diameter	21 mm
Door handle mount diameter	17.8 mm
Handle height inc. rosette/ label	68.5 mm
Rosette diameter	55 mm
Rosette thickness	8 mm
Cam diameter	8 mm
Hole distance	38 mm
