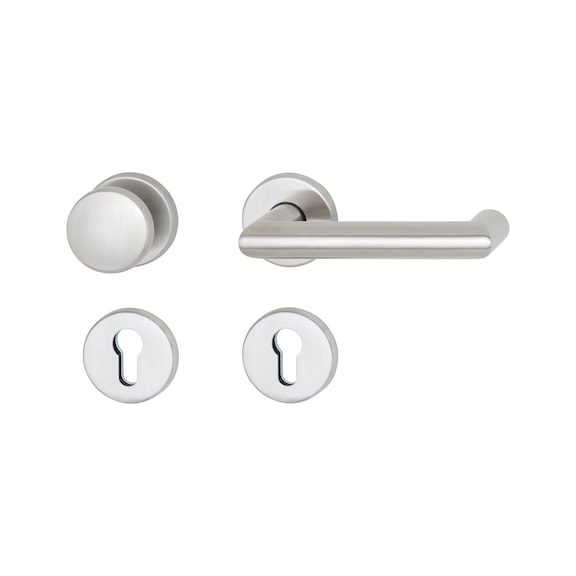

Door handles A 507

Name: Door handles A 507
Brand: Würth
SKU: 0687154073

Rosette fitting A 507
DH-A2-A507-CH-ROS-CK-L/R-MATT

All versions

Individual price display after login

Door handles A 507

Art.-no. 0687154073

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Maximum possible retention

The handle and base rosette are securely and permanently connected for the best possible hold

The continuous screw connection with metric screws and support cam provide optimal support for the rosette

Notice

Door handles include an unmounted square expansion pin or knob pin ■ 8 mm with an M12 thread.

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

For private homes and interior spaces, such as interior, office, bathroom and hallway doors.


Punched-hole	PC
Fitting version	Handle/knob
Suitable for	Office doors, Surgery doors, Apartment entrance doors
Distance (from handle to lock)	72 mm
Fire protection certified	No
Bearing Technology	Door handle, fixed, With plastic bearing
Material	Stainless steel A2, 1.4301
Gloss level	Matt
Suitable for min./max. door thickness (TS)	38-45 mm
DIN direction	DIN R/L
Standards	EN 1906
Utilisation category	Class 4
Environmental Product Declaration	Yes
Type of assembly	Continuous fastening
Square size	8 mm
Spindle	With M12 thread roll
Insertion depth	62 mm
Handle length	142 mm
Handle diameter	21 mm
Door handle mount diameter	17.8 mm
Handle height inc. rosette/ label	68 mm
Knob/handle plate/loop handle	Solid
Knob diameter	50 mm
Grip height inc. rosette/label	46 mm
Rosette/ shield shape	Rosette round
Rosette diameter	55 mm
Rosette thickness	8 mm
Cam diameter	8 mm
Hole distance	38 mm
