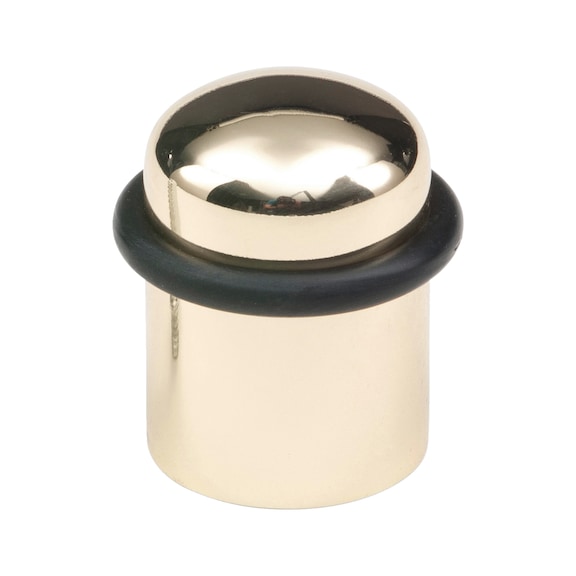

Doorstop, type B - DRSTOP-B-ZD-(BRS)-POLISHD-D32MM

Doorstop, type B

Name: Doorstop, type B
Brand: Würth
SKU: 0686191015

Doorstop type B
DRSTOP-B-ZD-(BRS)-POLISHD-D32MM

Art.-no. 0686191015

EAN 4046777083910

All versions

Similar products

Prices for customers after login

Doorstop, type B

Art.-no. 0686191015

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

One-piece door stopper suitable for ground assembly

Specified dimensions not binding. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Private housing. Protects door from damage.

Instructions

Screw stud screw into stopper. Afterwards, fix the entire unit to the ground using the nylon dowel (6 mm).

If structural circumstances require, stud screws M6 x 60 mm (art. no. 0232306060) in conjunction with a Zebra Shark plastic multi-purpose anchor without collar (art. no. 090600851) can be used to attach the unit.


Suitable for	Floor-mounted
Material	Die-cast zinc
Material of buffer	Rubber
Surface	Brass plated
Gloss level	Polished
Diameter	32 mm
Height	44 mm

Additional accessory:

Product

Description

Quantity

Price
/PU

Stud screw Zinc-plated steel

STUDSCR-4.8-(A2K)-M6X60

Art.-no. 0232306060

With socket head and wrench flat from size M8

x 100 pcs

Plastic multi-purpose Zebra Shark<SUP>® </SUP>anchor without collar

Plastic multi-purpose Zebra Shark® anchor without collar

DWL-PLA-WO.COLLAR-8X51

ZEBRA-SHARK

Art.-no. 090600851

Universal anchor for fixtures in almost all building materials (low load range)
