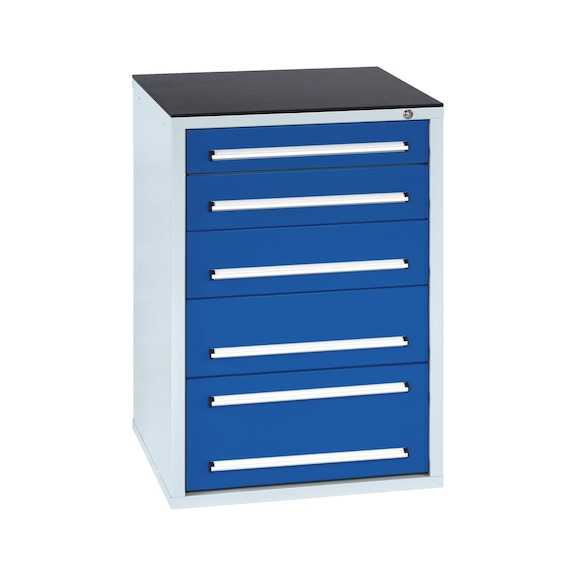

Drawer cabinet PRO 700 - DRWRCAB-ST5-700-RAL5010

Drawer cabinet PRO 700 - DRWRCAB-ST5-700-RAL5010 - 1

Drawer cabinet PRO 700 - DRWRCAB-ST5-700-RAL5010 - 2

Drawer cabinet PRO 700

Name: Drawer cabinet PRO 700
Brand: Würth
SKU: 0957333051

Drawer cabinet PRO 700
DRWRCAB-ST5-700-RAL5010

Art.-no. 0957333051

EAN 4046778513805

All versions

Similar products

Prices for customers after login

Drawer cabinet PRO 700

Art.-no. 0957333051

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Robust, spacious drawer cabinet for storing tools, machines and other work equipment.

Sturdy sheet steel construction, multi-folded and welded

Housing enclosed top and bottom

Cabinet depth: 703 mm

Surface protected by plastic-coated 8-mm cover panel

Central locking system secures the contents against theft

Aluminium handle strip with labelling strips and transparent cover

Built-in safety drawer lock prevents tipping

Drawer capacity: 100 kg with evenly distributed load

Rows of slots and perforated base for inserting dividers

Advantages of the PRO series:

Wide range of models to suit your individual requirements

Choice of 4 RAL colours for the front panels

Locks compatible with central locking system

Drawers with 100% full extension and 80% partial extension

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Type description	PRO 700/S5
Width x depth x height (external dimension)	722 x 703 x 1036 mm
Number of drawers	5 PCS
Drawer design	1 drawer, box height 100 mm/front height 120 mm, partial extension, 1 drawer, box height 100 mm/front height 150 mm, full extension, 1 drawer, box height 100 mm/front height 180 mm, full extension, 1 drawer, box height 100 mm/front height 210 mm, full extension, 1 drawer, box height 100 mm/front height 300 mm, full extension
Width x depth (internal dimension of drawer) (B x T)	586 x 586 mm
Load capacity of drawer	100 kg
Cabinet colour	Light grey RAL 7035
Colour of drawer	Gentian blue RAL 5010
Material	Sheet steel
Surface	Powder-coated

Additional accessory:

Product

Description

Quantity

Price
/PU

PRO trough panel set

DIVIDRPLT-(F.DRWRCAB-PRO700S)-40MM-53PCS

Art.-no. 0957364140

Drawer divider set for PRO 700 S drawer cabinet for clearly laid-out and maximum use of space

x 1 pcs

PRO plastic box set

PLABOX-(F.DRWRCAB-PRO700S)-40MM

Art.-no. 0957364240

Drawer divider set for PRO 700 S drawer cabinet. Perfect division into smaller compartments to store small parts such as screws, nails, components and other items.

x 1 pcs

PRO plastic box set

PLABOX-(F.DRWRCAB-PRO700S)-70MM

Art.-no. 0957364270

Drawer divider set for PRO 700 S drawer cabinet. Perfect division into smaller compartments to store small parts such as screws, nails, components and other items.

x 1 pcs

PRO compartment divider set

CPRTSEPR-(F.DRWRCAB-PRO700S)-100MM-4PCS

Art.-no. 0957364310

Drawer divider set for PRO 700 S drawer cabinet

x 1 pcs

PRO compartment divider set

CPRTSEPR-(F.DRWRCAB-PRO700S)-100MM-8PCS

Art.-no. 0957364311

Drawer divider set for PRO 700 S drawer cabinet

x 1 pcs
