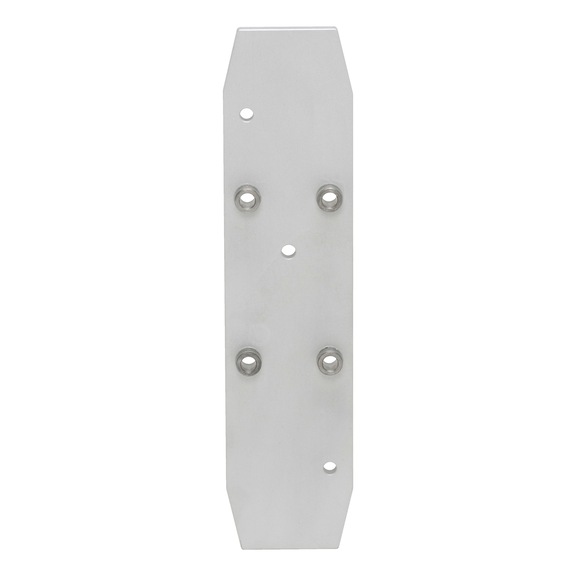

Drilling jig For escutcheon fittings with WC thumbturn - AY-DRILLINGJIG-DRFRN-INSERT-78/38-D7MM

Drilling jig For escutcheon fittings with WC thumbturn

Drilling jig for DH + scrty dr fttng w/ WC dr hndl
AY-DRILLINGJIG-DRFRN-INSERT-78/38-D7MM

Art.-no. 0688191316
EAN 4049557726205
All versions

Prices for customers after login
Drilling jig For escutcheon fittings with WC thumbturn

Art.-no. 0688191316

Prices for customers after login
Quantity
PU
x 1 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Glass-bead-blasted surface



Drilling jig made from raw aluminium



Hardened drill bushings


Good drill-bit guide

Notice

Base element 0688 191 300 is always required when using the drilling jig.

Specified dimensions not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for door handle

DH ZD 1
DH ZD 2
DH ZD 3
DH ZD 4
DH ZD 5
DH ZD 7
DH ZD 8
DH ZD 9
DH A 202
DH A 203
DH A 205
DH A 207
DH Agena
DH Dorado

Material

Aluminium

Surface

Plain

Hole distance (vertical)

78 mm

Square size

8 mm

Bore diameter

7 mm

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Drilling jig base element For door handles and security door fittings
Drilling jig base element For door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

x 1 pcs
