Drilling jig For security door and other door handles with door bolt/CK punch - AY-DRILLINGJIG-DRFRN-INSERT-72/38-D7,5MM

Drilling jig For security door and other door handles with door bolt/CK punch

Name: Drilling jig For security door and other door handles with door bolt/CK punch
Brand: Würth
SKU: 0688191312

Milling jig for DH + scrty dr lock w/ BB/PZ-punch
AY-DRILLINGJIG-DRFRN-INSERT-72/38-D7,5MM

Art.-no. 0688191312

EAN 4049557726168

All versions

Similar products

Individual price display after login

Drilling jig For security door and other door handles with door bolt/CK punch

Art.-no. 0688191312

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Glass bead peened surface

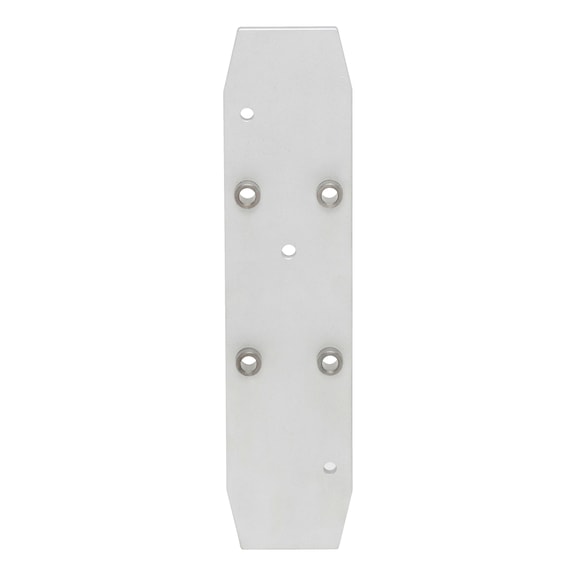

Drilling jig made from raw aluminium

Accessories for rosettes with BB or PC perforation

Hardened drill bushings

Guides the tips well

For locks with 72 mm spacing

Notice

The base element 0688 191 300 is always necessary when the drilling jig is used.

Specified dimensions are not binding. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Suitable for door handle	DH AL 120/30, DH AL 130/30, DH AL 150/30, DH AL 180/30, DH AL 190/30, DH Nuevo, DH ZD 35, DH ZD 36, DH ZD 37, DH ZD 38, DH ZD 39, DH ZD 40, DH ZD 43, DH ZD 44, DH ZD 45, DH AL 170/30, DH AL 210/30
Material	Aluminium
Surface	Plain
Hole distance (vertical)	72 mm
Hole distance 2	38 mm
Square size	8 mm
DIN direction	DIN R/L
Bore diameter	7.5 mm
