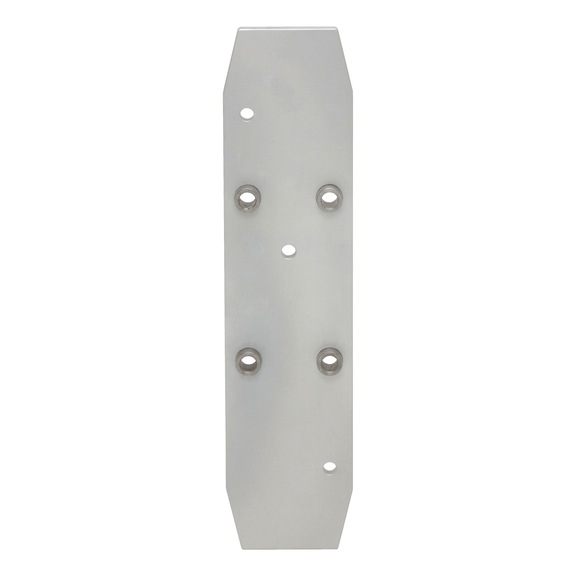

Drilling jig for escutcheon fittings with WC thumbturn

Name: Drilling jig for escutcheon fittings with WC thumbturn
Brand: Würth
SKU: 0688191317

Drill. jig f. DH + sec. door fitting w/ WC th-turn
AY-DRILLINGJIG-DRFRN-INSERT-78/38-D7,5MM

Art.-no. 0688191317

EAN 4049557726212

All versions

Similar products

Individual price display after login

Drilling jig for escutcheon fittings with WC thumbturn

Art.-no. 0688191317

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

Glass bead-blasted surface

Drilling jig made from untreated aluminium

Hardened drill bushings

Good drill-bit guide

Notice

Basic body 0688 191 300 is always required when using the drilling jig.

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Suitable for door handle	DH AL 120/30, DH AL 130/30, DH AL 180/30, DH AL 150/30, DH AL 190/30, DH Nuevo, DH ZD 35, DH ZD 36, DH ZD 37, DH ZD 38, DH ZD 39, DH ZD 40, DH ZD 43, DH ZD 44, DH ZD 45, DH AL 170/30, DH AL 210/30
Material	Aluminium
Surface	Plain
Hole distance (vertical)	78 mm
Square size	8 mm
Bore diameter	7.5 mm

Required accessory:

Product

Description

Quantity

Price
/PU

Drilling jig base element for door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

Art.-no. 0688191300

x 1 pcs
