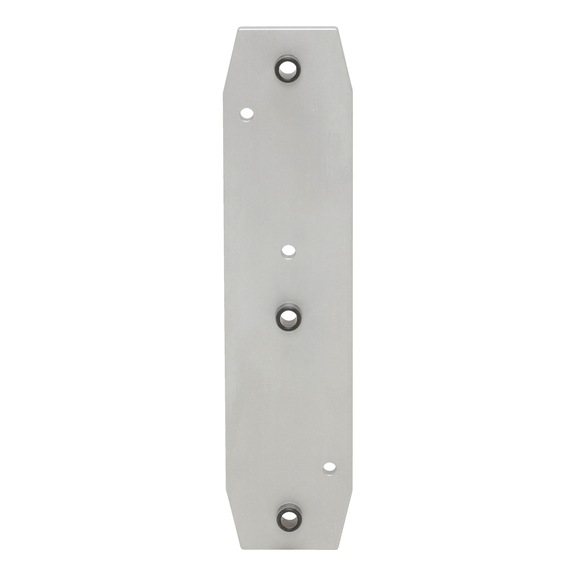

Drilling jig for security door fittings with long plate

Name: Drilling jig for security door fittings with long plate
Brand: Würth
SKU: 0688191323

Drill. jig f. DH + sec. door fitting w/ long plate
AY-DRILLINGJIG-DRFRN-INSERT-72/92-D8MM

Art.-no. 0688191323

EAN 4049557726243

All versions

Similar products

Individual price display after login

Drilling jig for security door fittings with long plate

Art.-no. 0688191323

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

For security door fittings with long plate

Drilling jig made from untreated aluminium

Hardened drill bushings

Good drill-bit guide

Dimensions subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Suitable for door handle	Security door handle S 302, Security door handle S 305, Security door handle S 202
Material	Aluminium
Surface	Plain

Required accessory:

Product

Description

Quantity

Price
/PU

Drilling jig base element for door handles and security door fittings

AY-DRILLINGJIG-DRFRN-UNIVERSAL

Art.-no. 0688191300

x 1 pcs
