EBL-24-5 recessed light

Name: EBL-24-5 recessed light
Brand: Würth
SKU: 0976504105

LED recessed light EBL-24-5
LGHT-LED-(EBL-24-5)-PLA-SSTCOL-NW

Art.-no. 0976504105

EAN 4053479481944

All versions

Similar products

Individual price display after login

EBL-24-5 recessed light

Art.-no. 0976504105

Individual price display after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service:

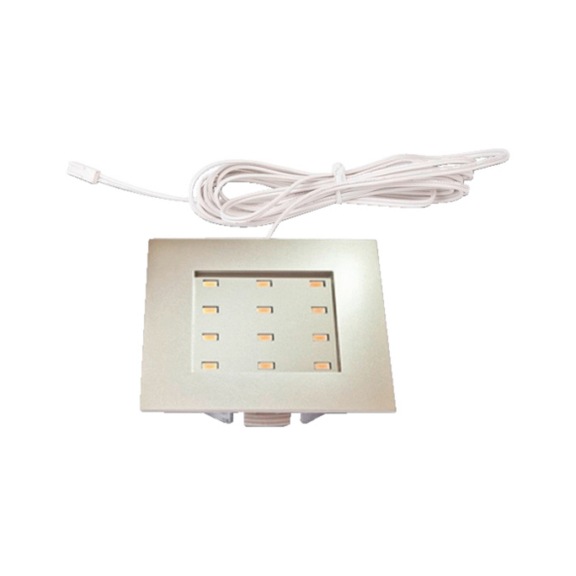

Flat LED light 24 V

This 5 W square steel-coloured light with 12x 416 mW long-life LEDs is available in two different light colour temperatures: Warm white (3,000 K) and neutral white (4,000 K).

The luminous flux is 275 lm for both versions and offers pleasant ambient lighting with a beam angle of 110°. The lamp has excellent colour rendering.

Quick and easy to install with plastic mounting clips integrated into the housing.

Dimensions are approximate and subject to change. Subject to technical changes.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Lamp type	LED
Nominal voltage	24 V/DC
Type of assembly	For embedding
Power rating	5 W
Number of LEDs	12 PCS
Colour of light	Neutral white
Colour temperature	4000 K
Luminous flux	275 lm
Min. colour rendering index (CRI)	90
Length	84 mm
Width	84 mm
Height	13.6 mm
Installation diameter	78 mm
Installation depth	12 mm
Connection type	Plug-in system LD2
Cable length	2500 mm
IP protection class	IP 44
Protection class	Protection class III/safety extra-low voltage
Life time of illuminant	30000 h
Min. illumination	21 lx
Max. illumination	520 lx
Energy efficiency class	A - A++
Included in delivery	1 x LED light incl. 2.5 m connection line with LD2 plug system

Additional accessory:

Product

Description

Quantity

Price
/PU

Assembly spring for built-in lights For ceiling mounting

ASMBYSPG-(F.LGHT-LED)-ST-ZN

Art.-no. 0976504140

Suitable for built-in lights EBL-24-2 to EBL-24-7

x 1 pcs

WiFi controller for 24 V LED lights

SWTCH-EL-WIFI-CONTR-24V-75W-DIM-12LANE

Art.-no. 0976504200

x 1 pcs
